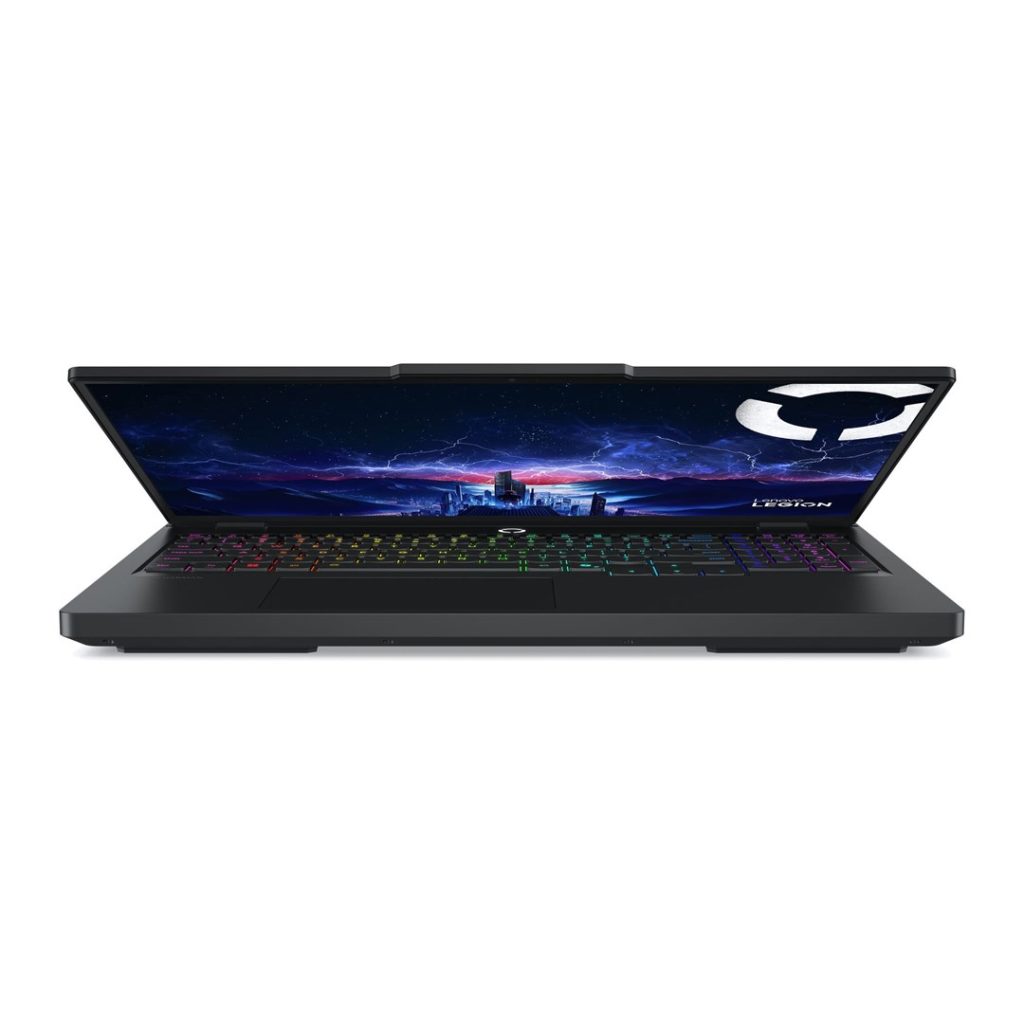

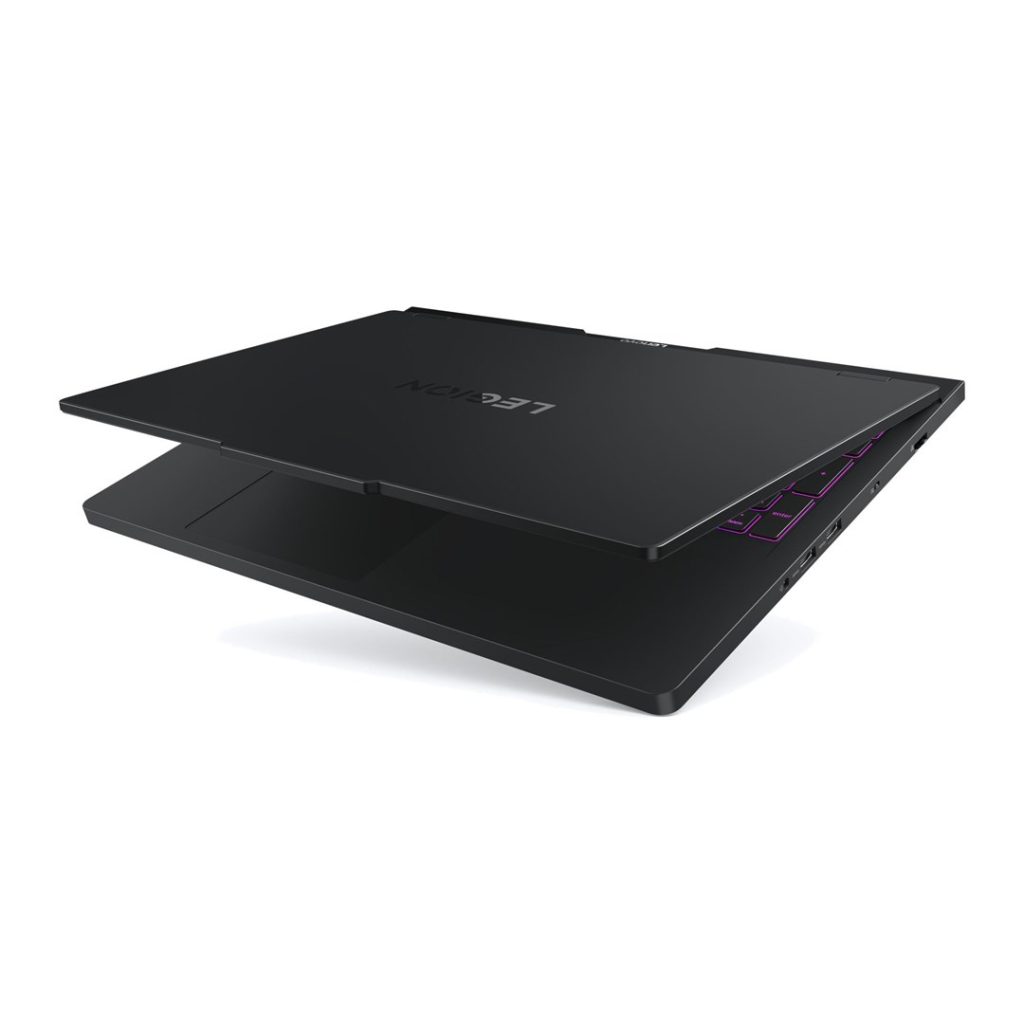

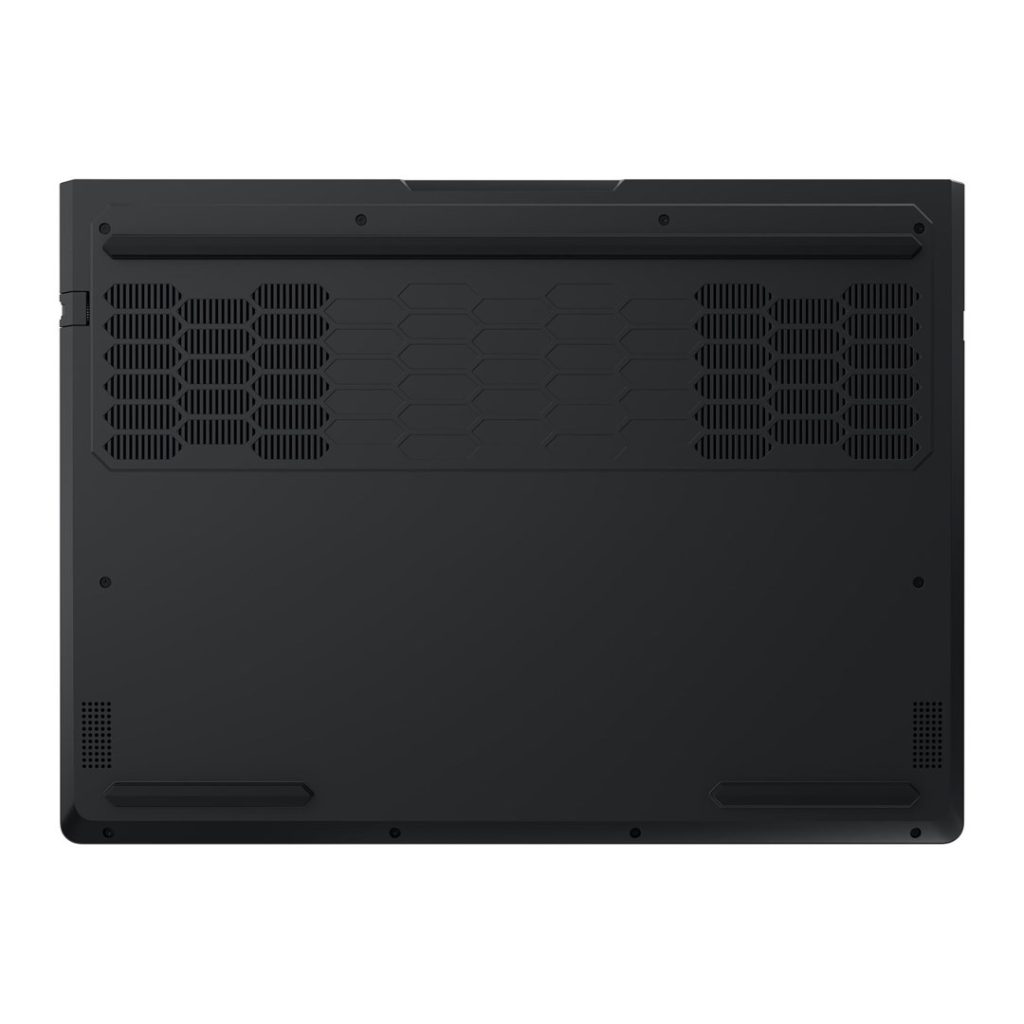

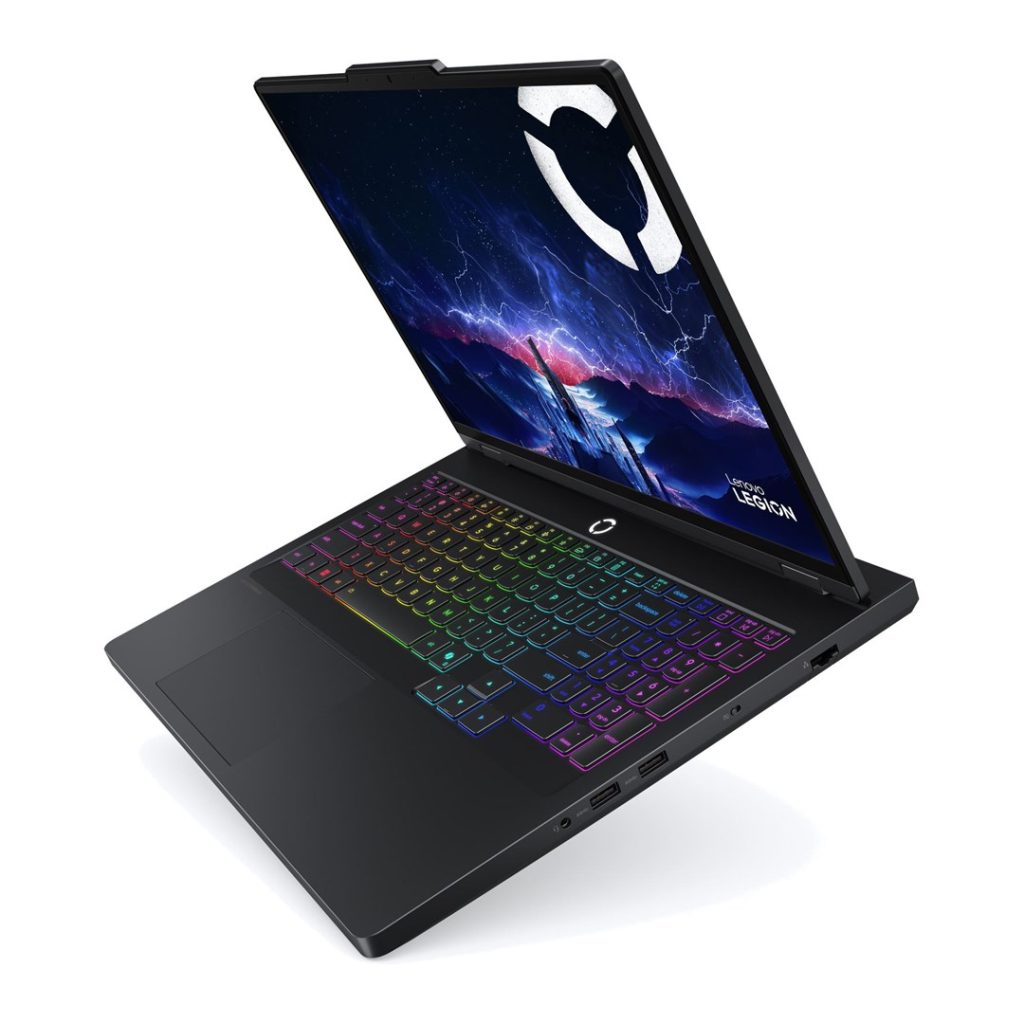

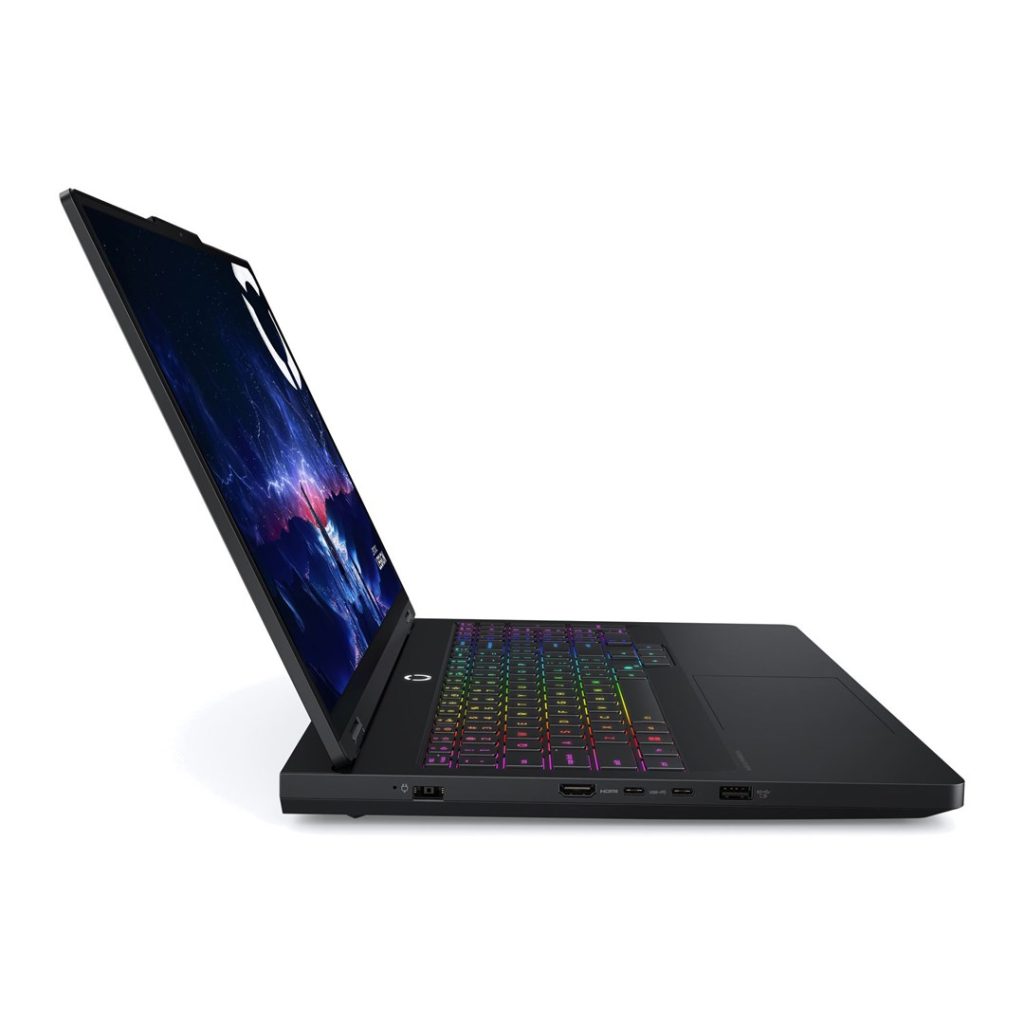

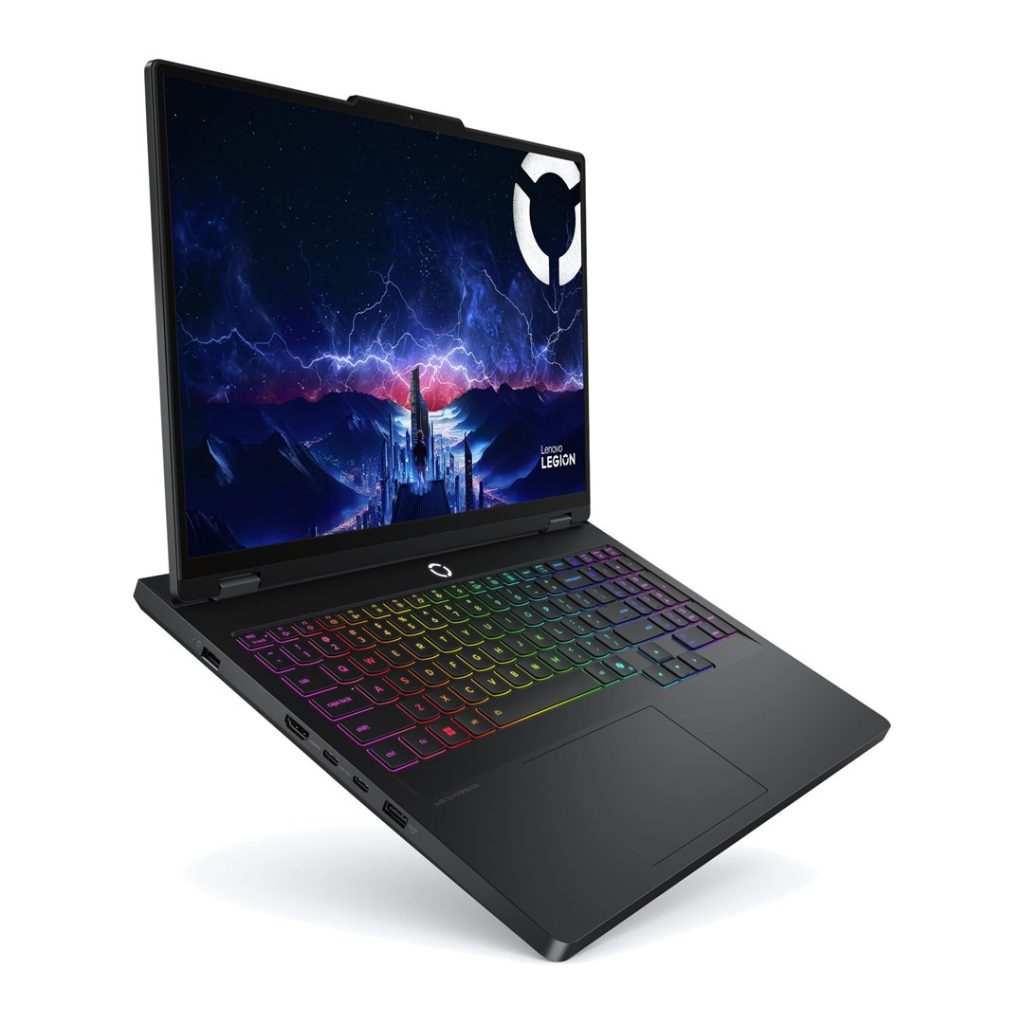

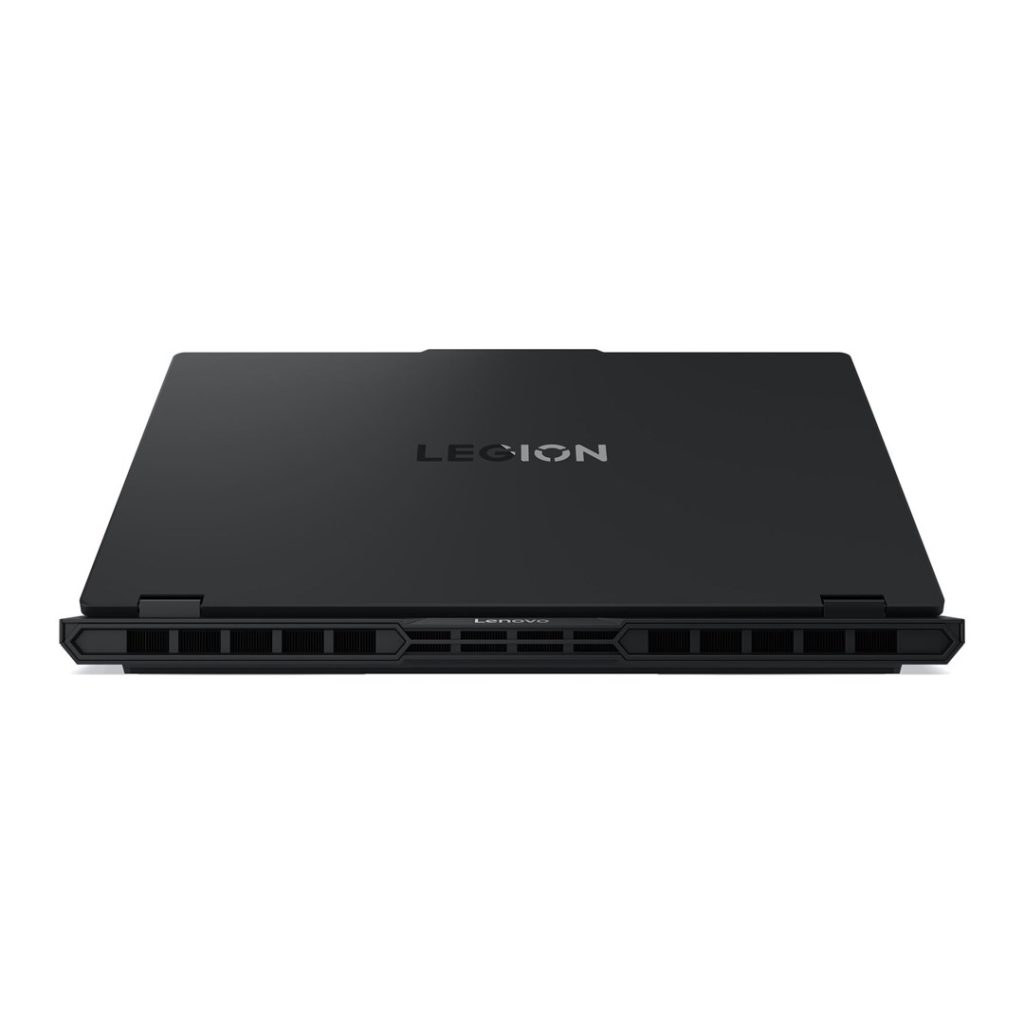

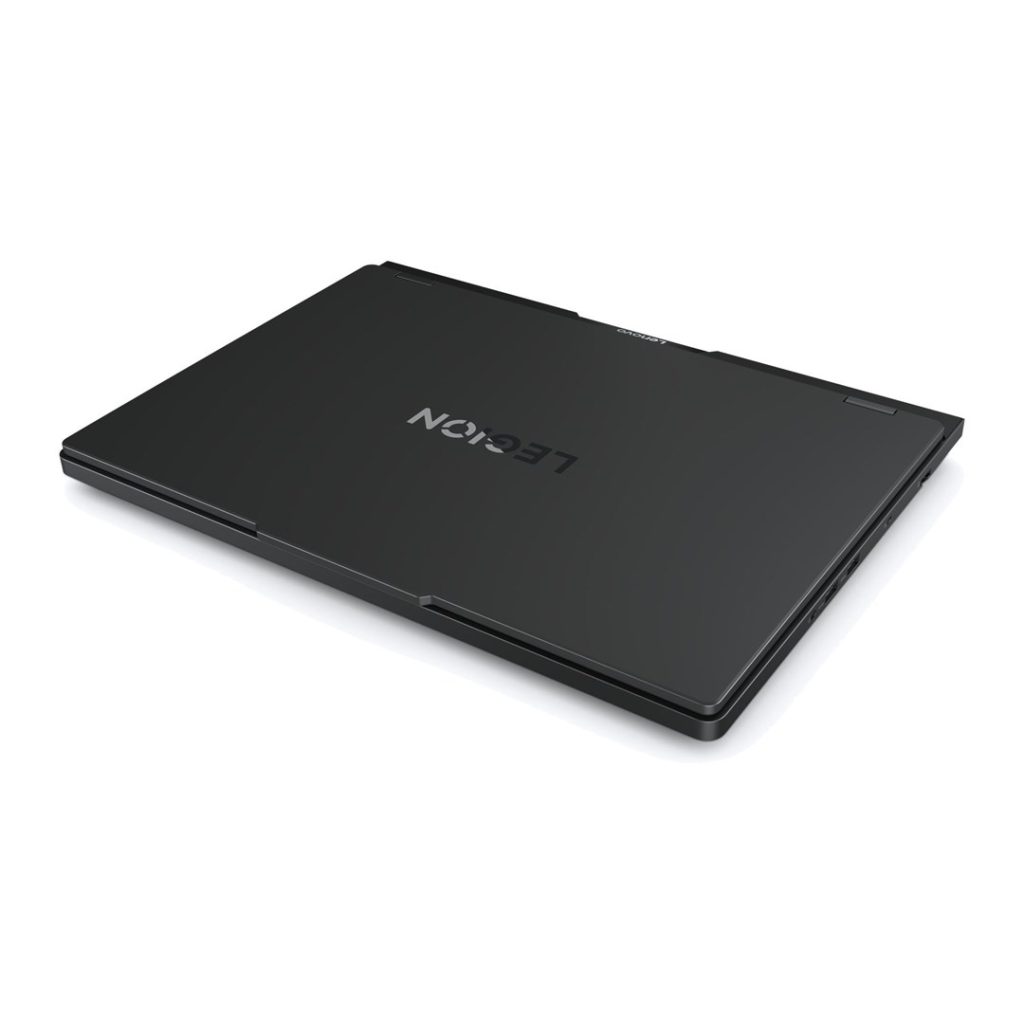

Lenovo Legion Pro 5 16IAX10H Ultra 9 275HX 16" WQXGA OLED 500 nits Glossy 165 Hz 32 GB DDR5 5600 SSD 1 TB GeForce RTX 5070 Ti 12 GB 80 Wh NoOS Eclipse Black

Certificates | Certification

RoHS compliant ErP Lot 6/26 TÜV Rheinland Low Blue Light (Hardware Solution) TÜV Rheinland Flicker Free TÜV Rheinland High Gaming Performance

Processor | Efficient-core Max Turbo Frequency

4.6 GHz

Processor | Maximum turbo power

160 W

Processor | Efficient cores

16

Processor | Efficient-core base frequency

2.1 GHz

Ports & interfaces | Thunderbolt 4 ports quantity

1

Keyboard | Keyboard backlit zone

24-zone RGB

Processor | Processor generation

Intel Core Ultra (Series 2)

Processor | Processor base power

55 W

Processor | Performance-core Max Turbo Frequency

5.4 GHz

Display | RGB colour space

DCI-P3

Processor | Performance cores

8

Processor | Performance-core base frequency

2.7 GHz

Neural processor unit (NPU) | Neural processor unit (NPU)

Intel AI Boost

Memory | Memory layout (slots x size)

2 x 16 GB

Display | Display brightness

500 cd/m²

Weight & dimensions | Height (front)

2.17 cm

Display | Maximum refresh rate

165 Hz

Security | Trusted Platform Module (TPM) version

2.0

Display | Panel type

OLED

Storage | SSD interface

PCI Express 4.0

Storage | SSD form factor

M.2

Keyboard | Keyboard backlit colour

RGB

Audio | Number of microphones

2

Audio | Speaker power

2 W

Storage | SSD capacity

1 TB

Graphics | Discrete GPU manufacturer

NVIDIA

Weight & dimensions | Height (rear)

2.6 cm

Design | Colour name

Eclipse black

Storage | NVMe

Yes

Display | High Dynamic Range (HDR) technology

Dolby Vision

Memory | Memory slots

2x SO-DIMM

Camera | Front camera resolution (numeric)

5 MP

Display | Colour gamut

100%

Graphics | Discrete graphics memory type

GDDR7

Storage | Total SSDs capacity

1 TB

Audio | Number of built-in speakers

2

Network | WWAN

Not installed

Keyboard | Keyboard backlit

Yes

Storage | Number of SSDs installed

1

Network | Bluetooth version

5.2

Display | High Dynamic Range (HDR) supported

Yes

Display | Touchscreen

No

Design | Housing material

Aluminium, PC-ABS

Security | Fingerprint reader

No

Ports & interfaces | Combo headphone/mic port

Yes

Storage | Card reader integrated

No

Ports & interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Processor | Processor manufacturer

Intel

Display | Native aspect ratio

16:10

Memory | Internal memory

32 GB

Audio | Built-in microphone

Yes

Processor | Processor model

275HX

Processor | Processor cores

24

Graphics | Discrete graphics card memory

12 GB

Ports & interfaces | HDMI version

2.1

Memory | Memory clock speed

5600 MHz

Memory | Maximum internal memory

32 GB

Network | Ethernet LAN

Yes

Ports & interfaces | Ethernet LAN (RJ-45) ports

1

Performance | Motherboard chipset

Intel HM870

Processor | Processor family

Intel Core Ultra 9

Display | Display resolution

2560 x 1600 pixels

Processor | Processor cache

36 MB

Weight & dimensions | Depth

268.1 mm

Design | Product colour

Black

Ports & interfaces | HDMI ports quantity

1

Ports & interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Weight & dimensions | Width

364.4 mm

Display | HD type

WQXGA

Battery | Battery capacity

80 Wh

Display | NVIDIA G-SYNC

Yes

Design | Product type

Laptop

Display | Display diagonal

40.6 cm (16")

Keyboard | Pointing device

Touchpad

Weight & dimensions | Weight

2.42 kg

Processor | Processor boost frequency

5.4 GHz

Network | Antenna type

2x2

Audio | Audio chip

Realtek ALC3306

Network | Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Network | Bluetooth

Yes

Graphics | Discrete graphics card model

NVIDIA GeForce RTX 5070 Ti

Keyboard | Numeric keypad

Yes

Storage | Total storage capacity

1 TB

Network | Ethernet LAN data rates

1000, 100

Processor | Processor threads

24

Network | Wi-Fi standards

Wi-Fi 6 (802.11ax)

Display | LED backlight

Yes

Ports & interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Power | AC adapter power

300 W

Graphics | Discrete graphics card

Yes

Security | Trusted Platform Module (TPM)

Yes

Display | Display surface

Gloss

Memory | Internal memory type

DDR5-SDRAM

Storage | Storage media

SSD

Memory | Memory form factor

SO-DIMM

Software | Operating system installed

No

Neural processor unit (NPU) | NPU performance up to

13 TOPs
