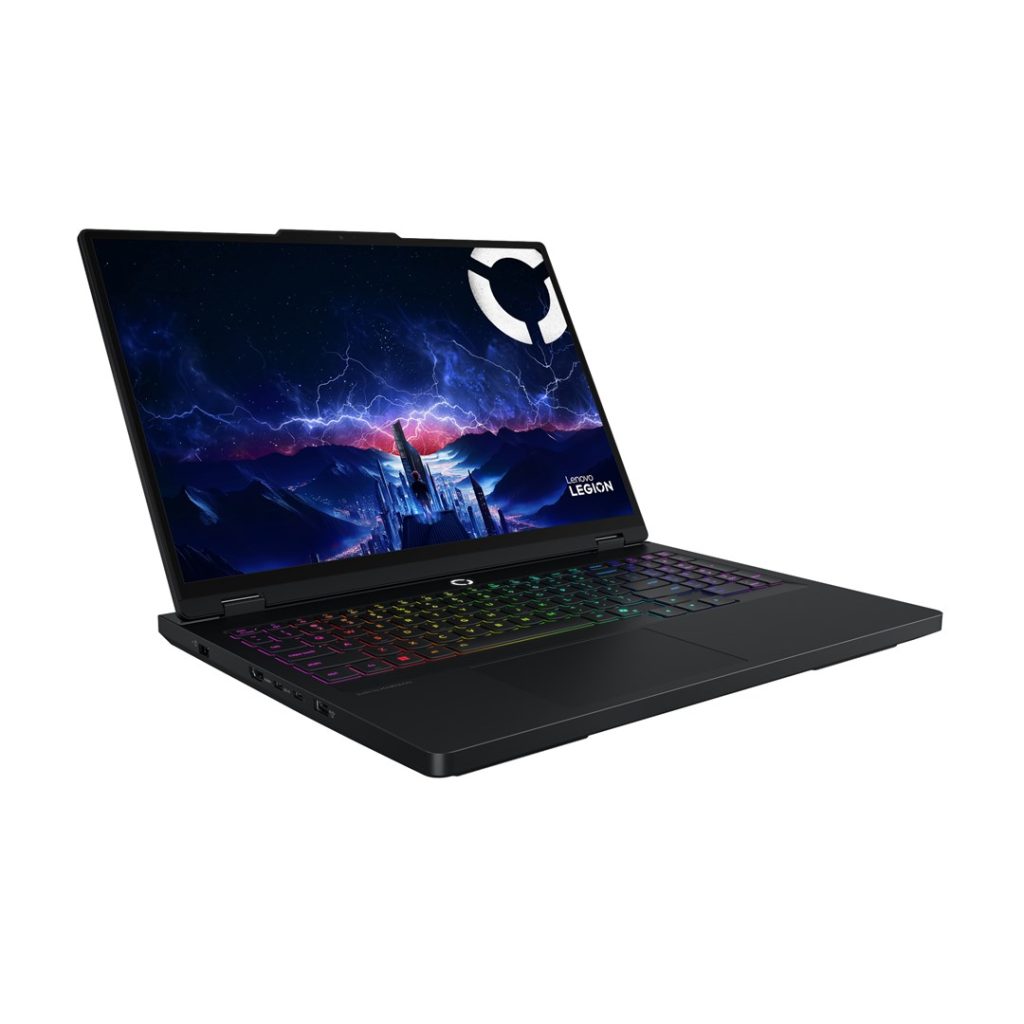

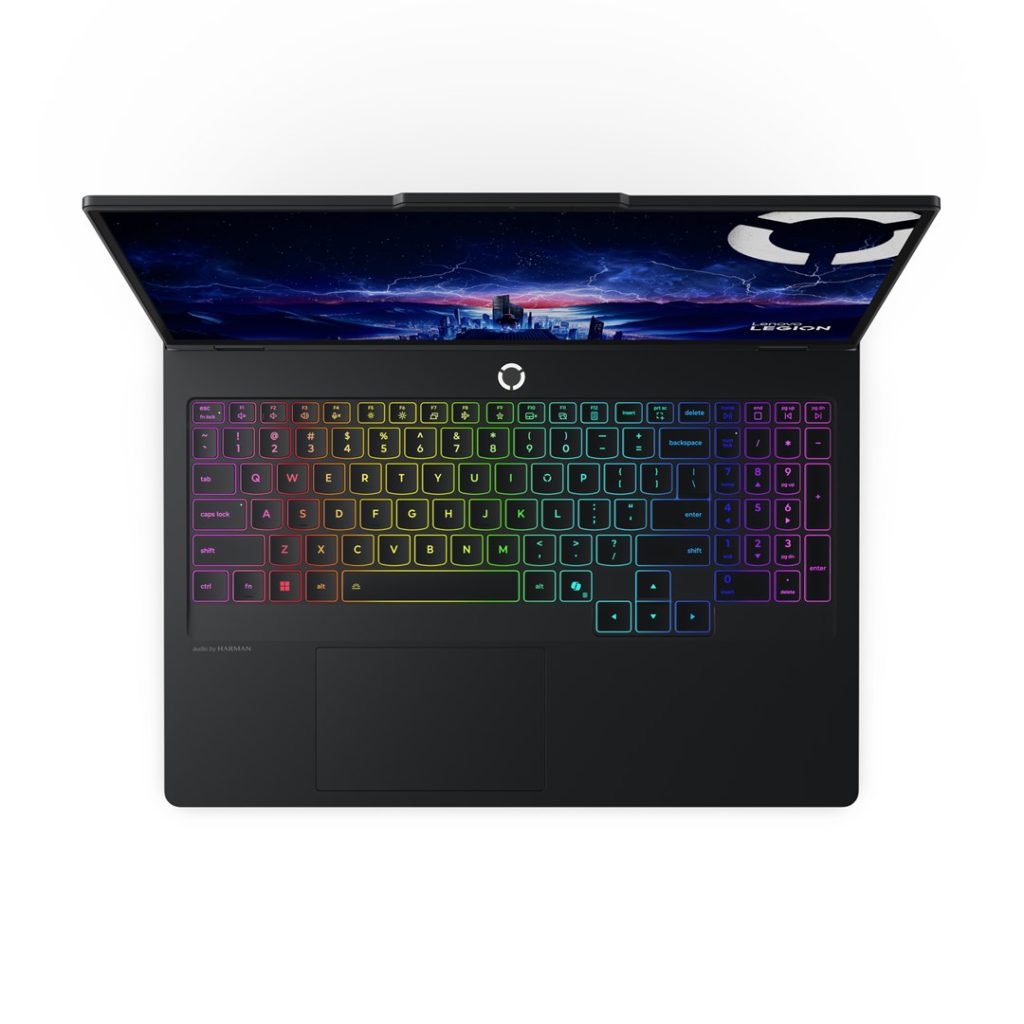

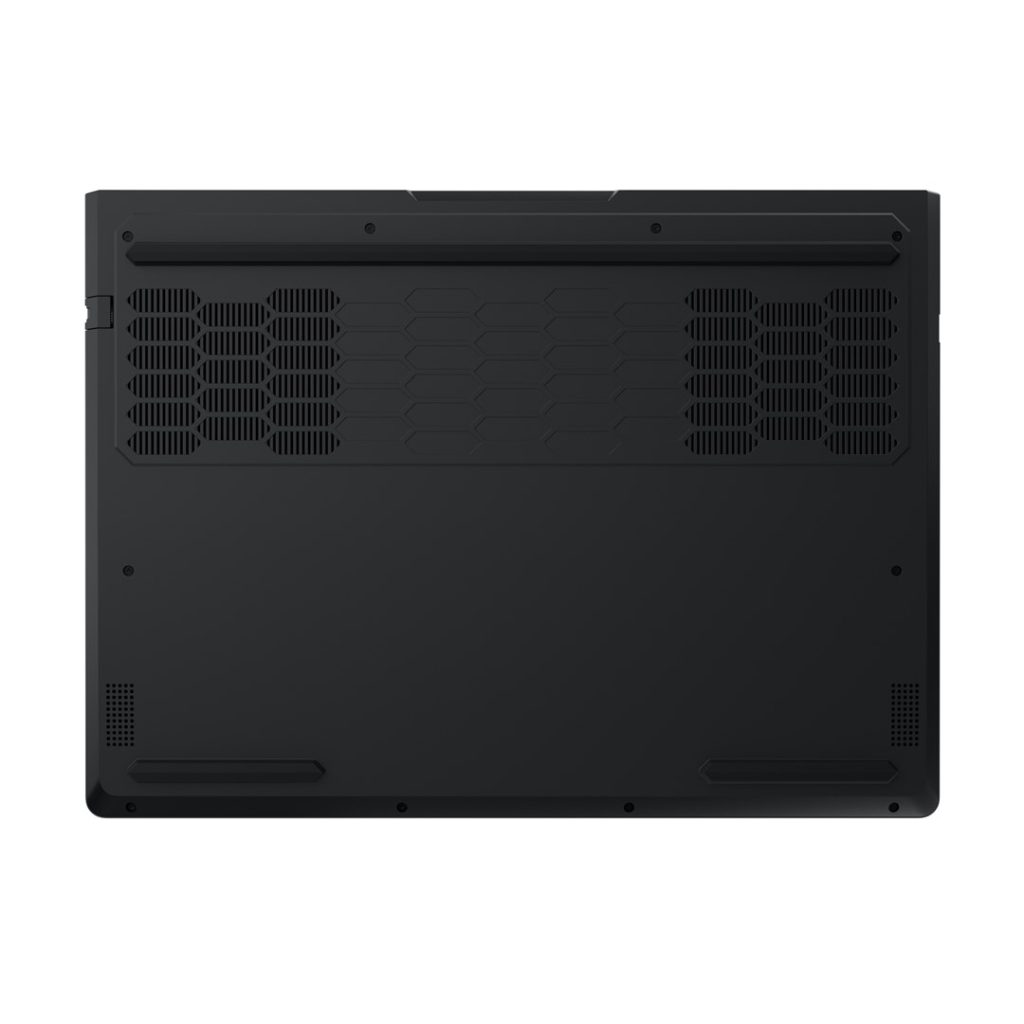

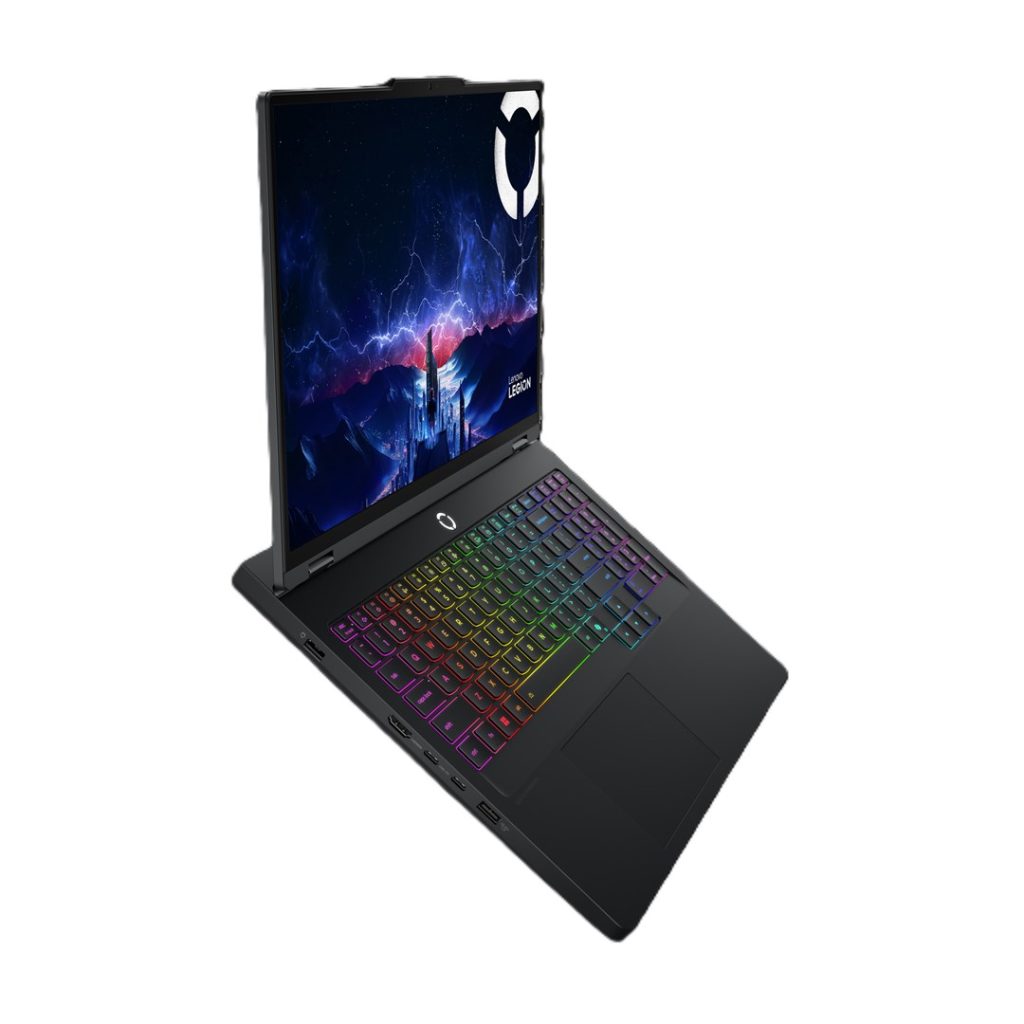

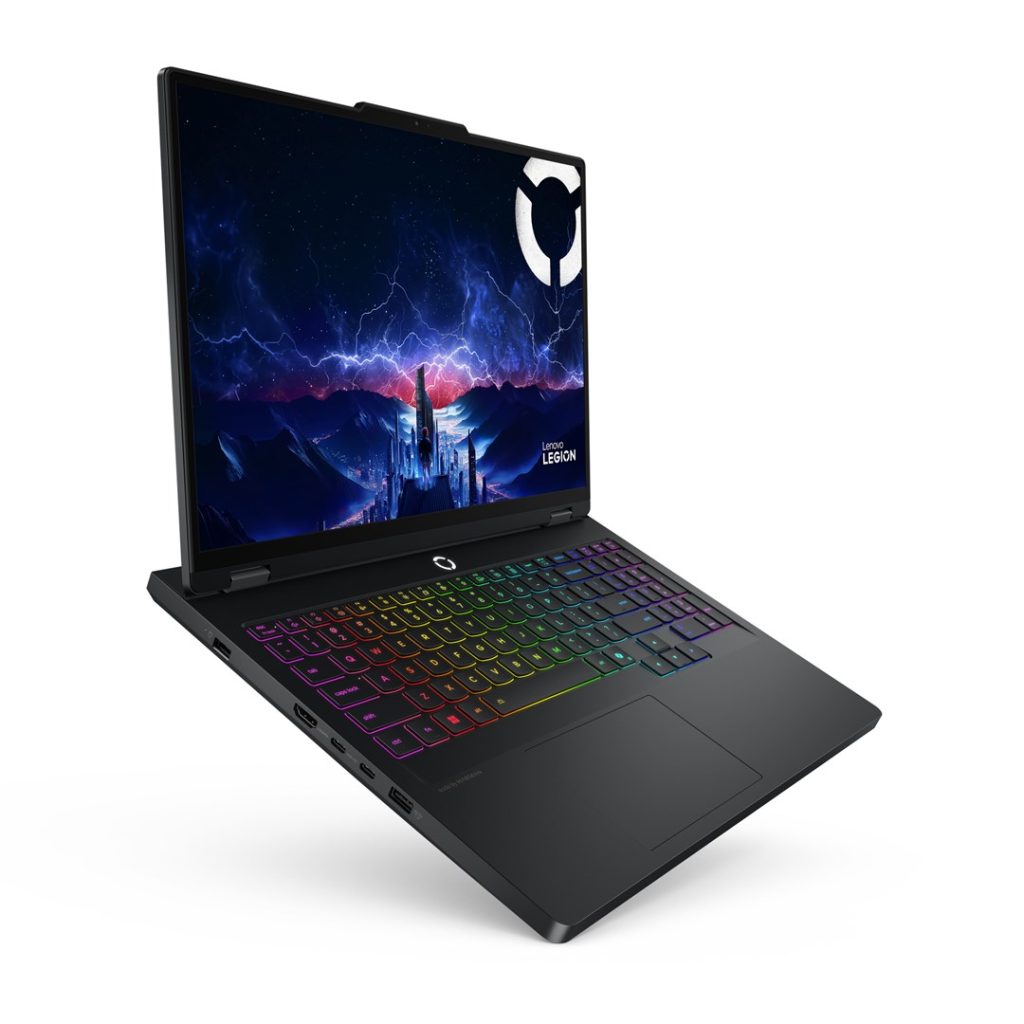

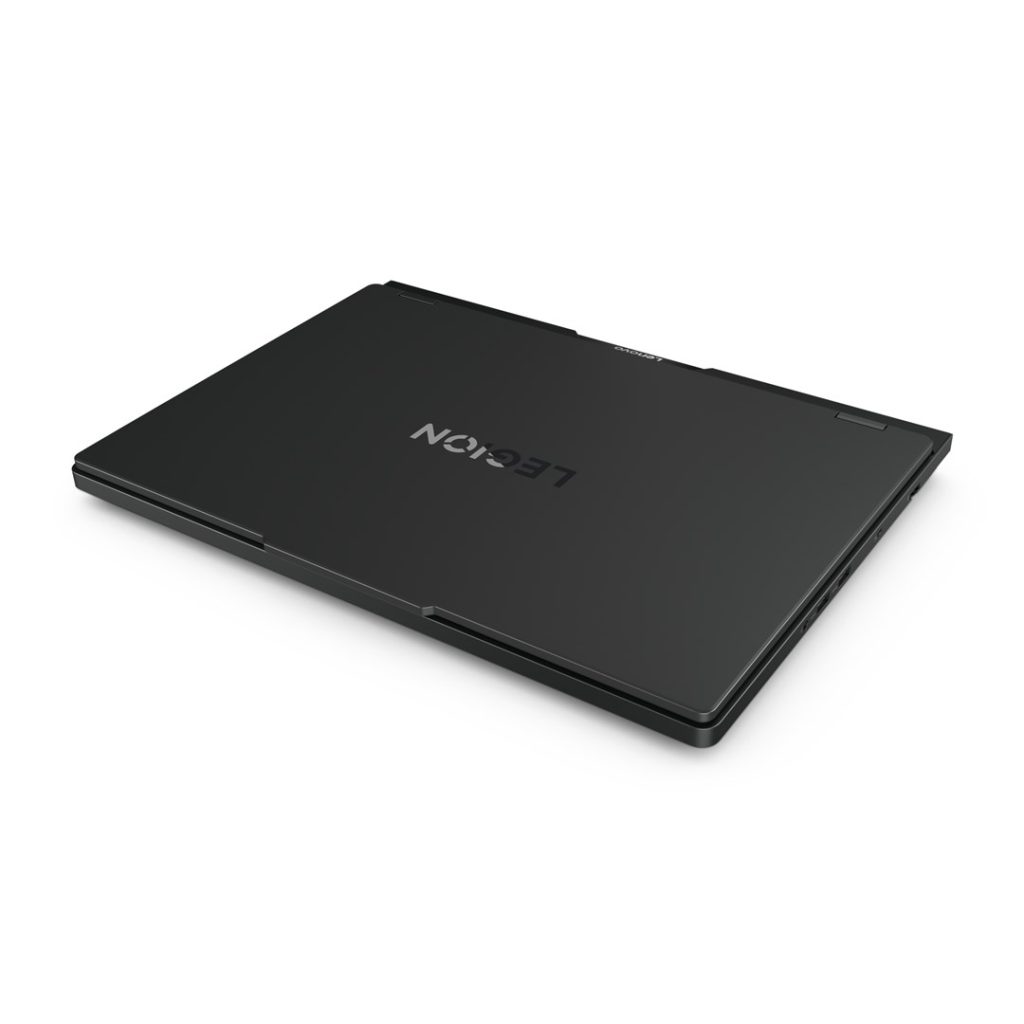

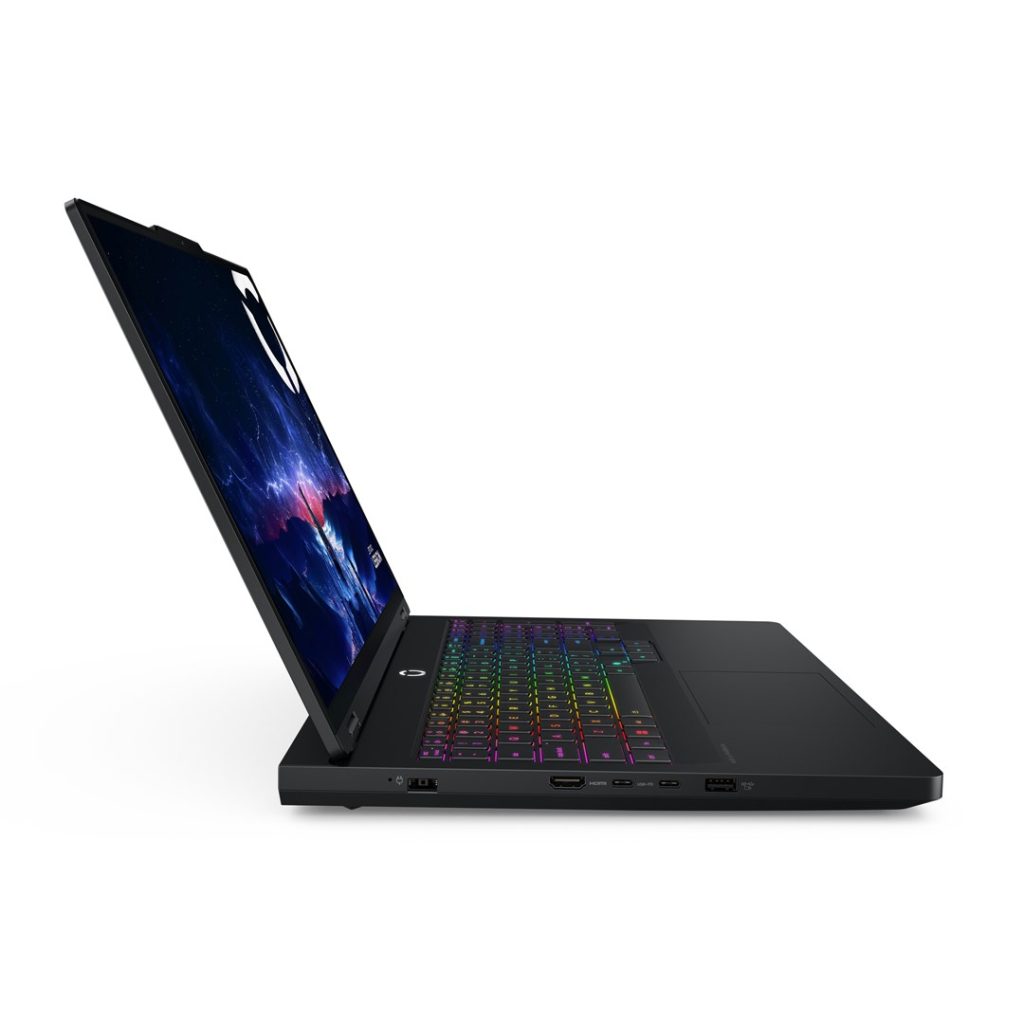

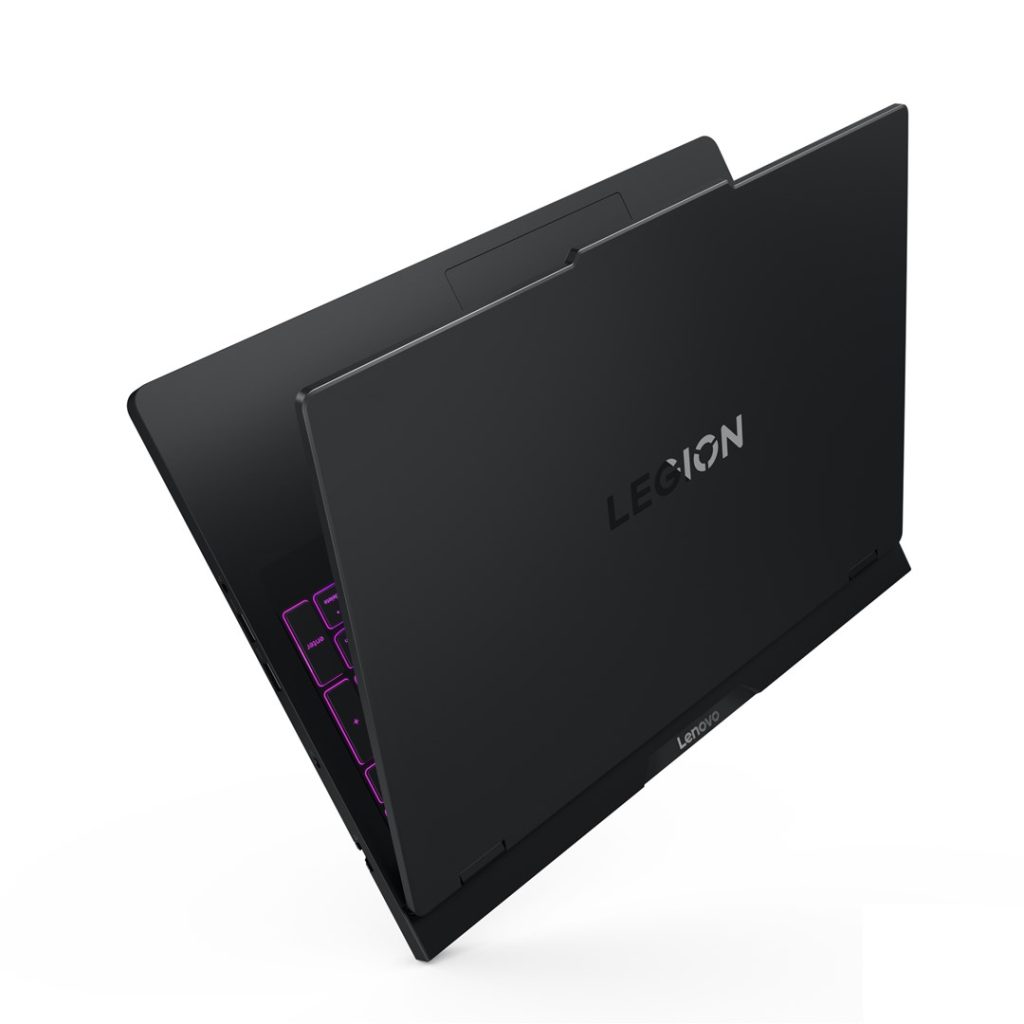

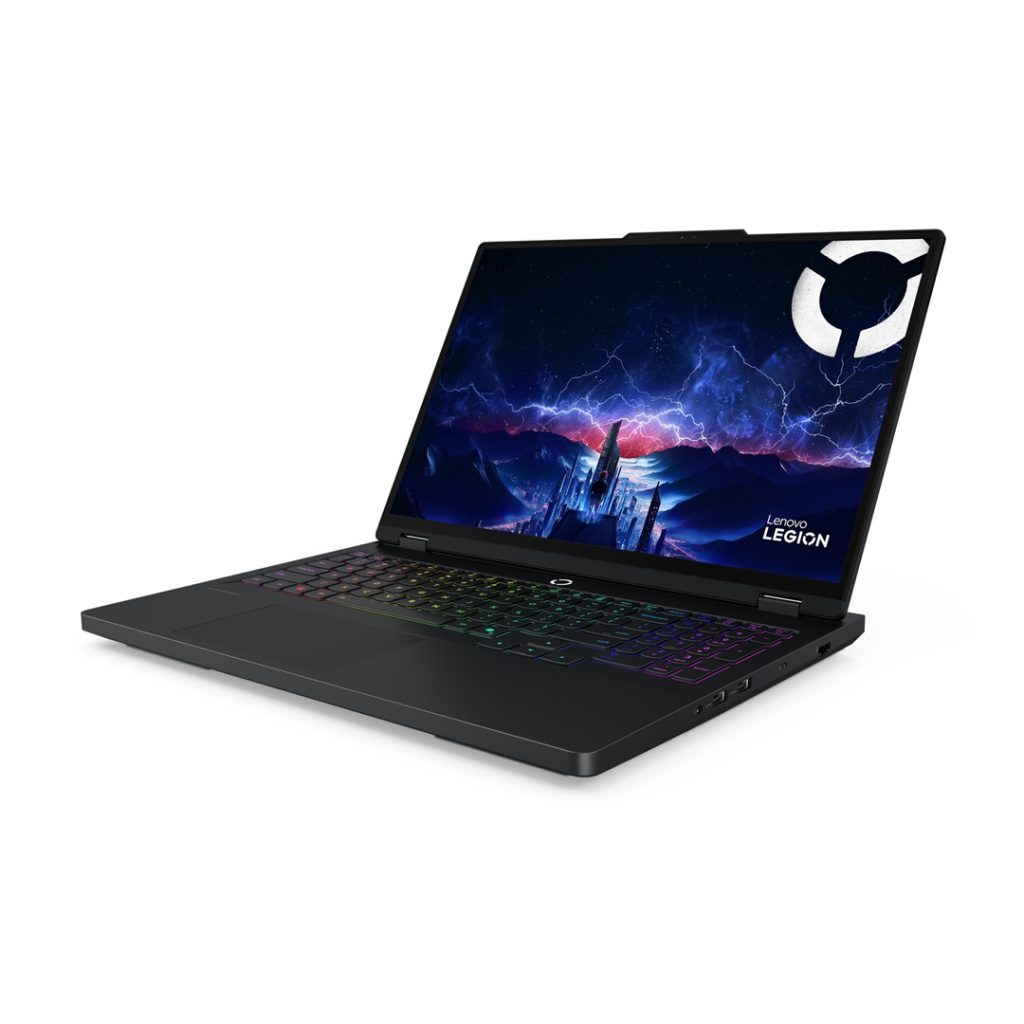

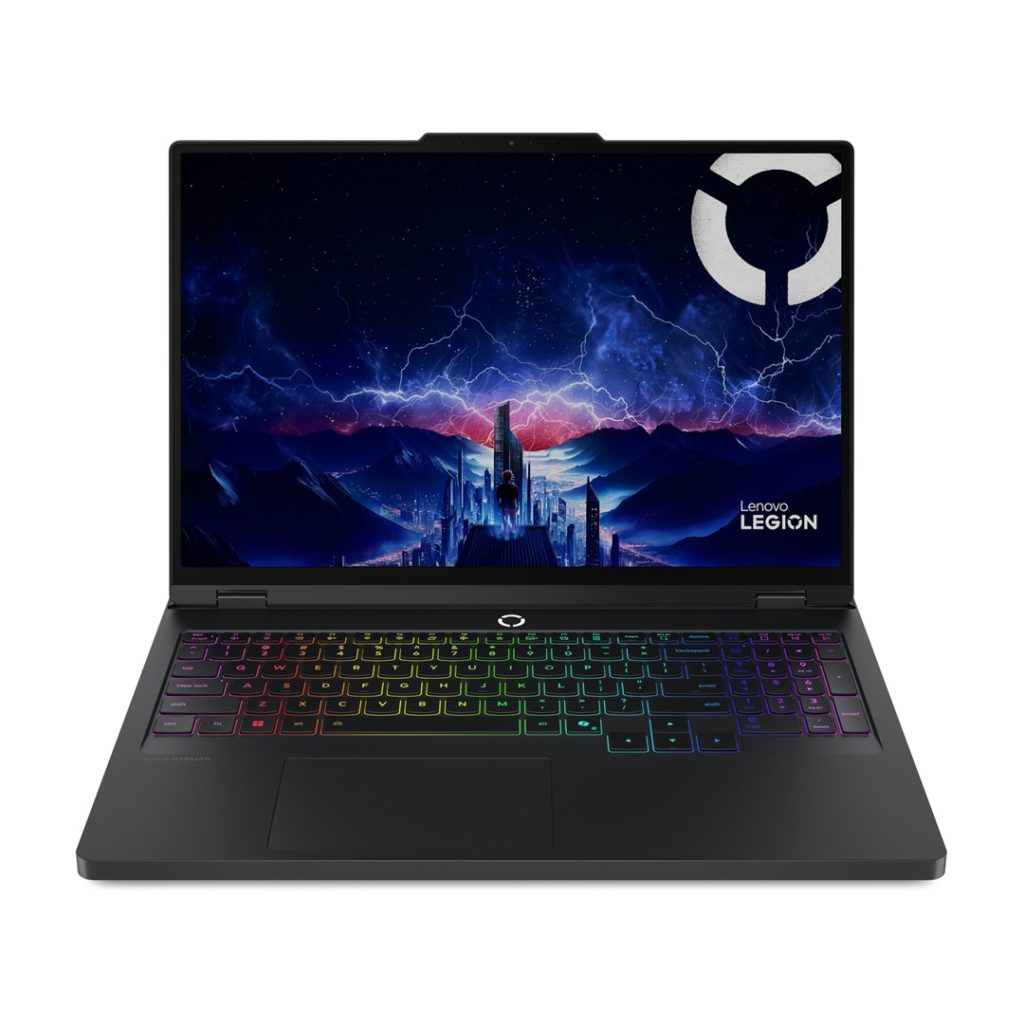

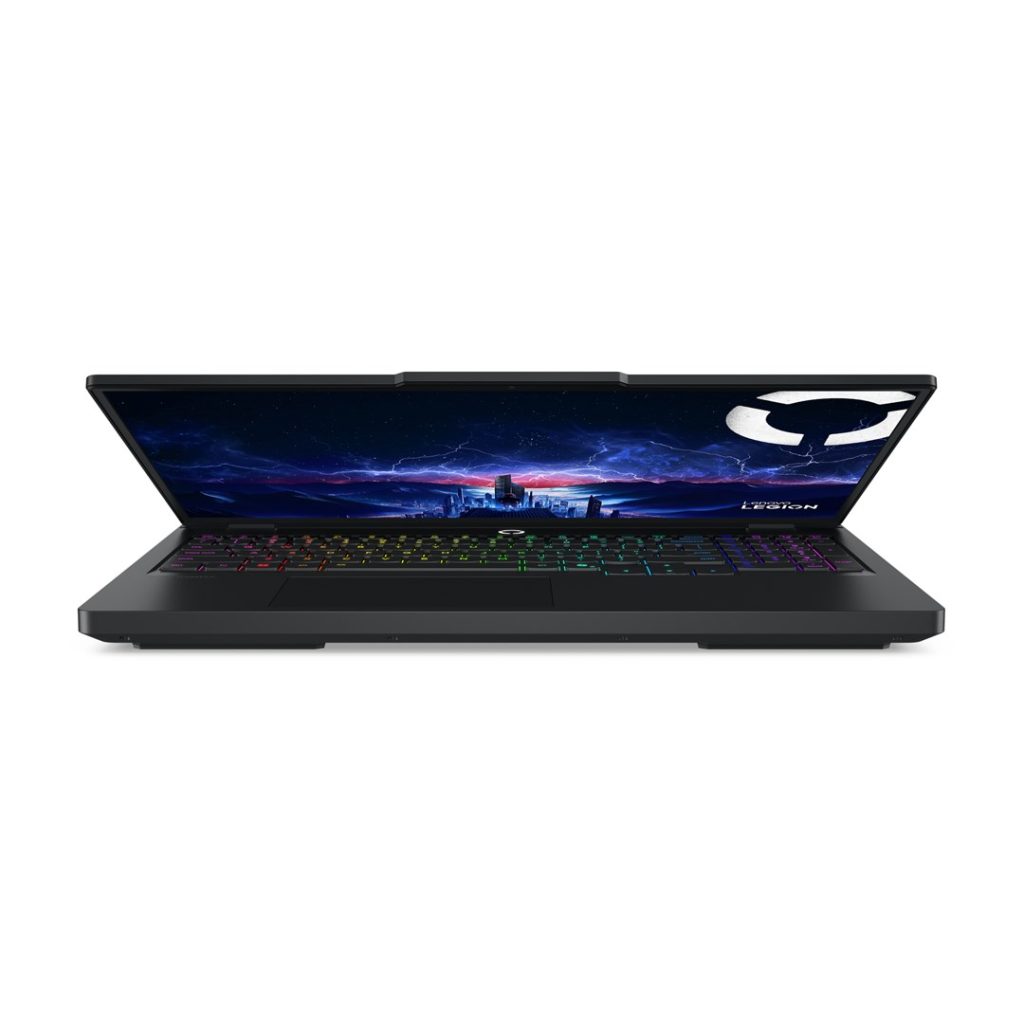

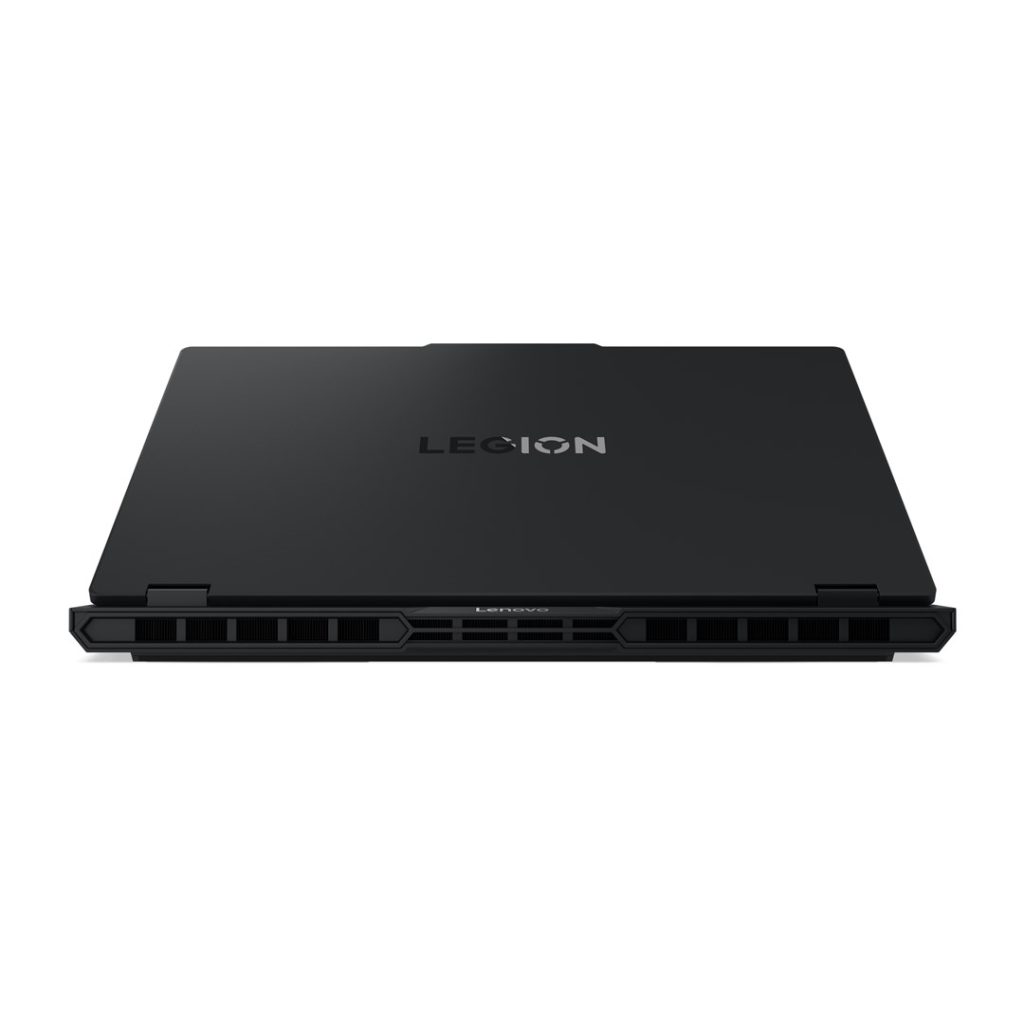

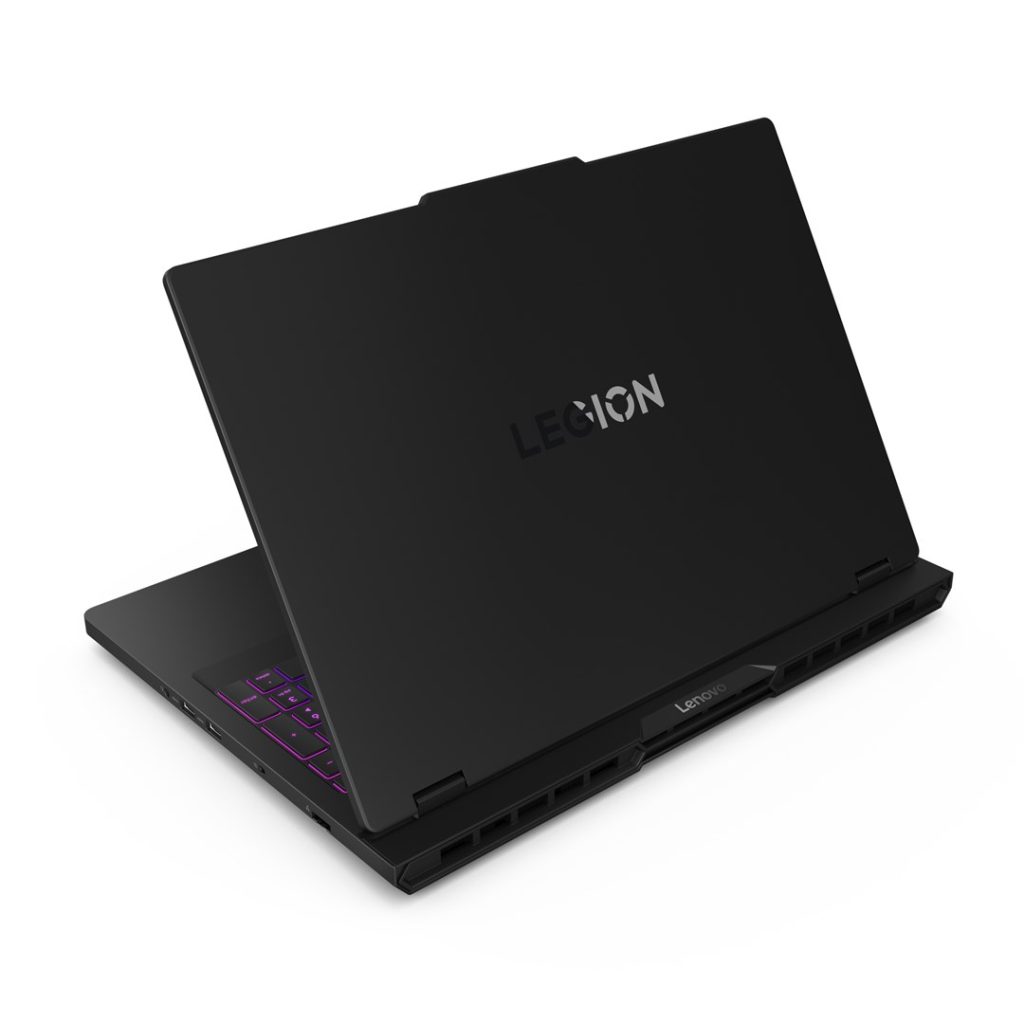

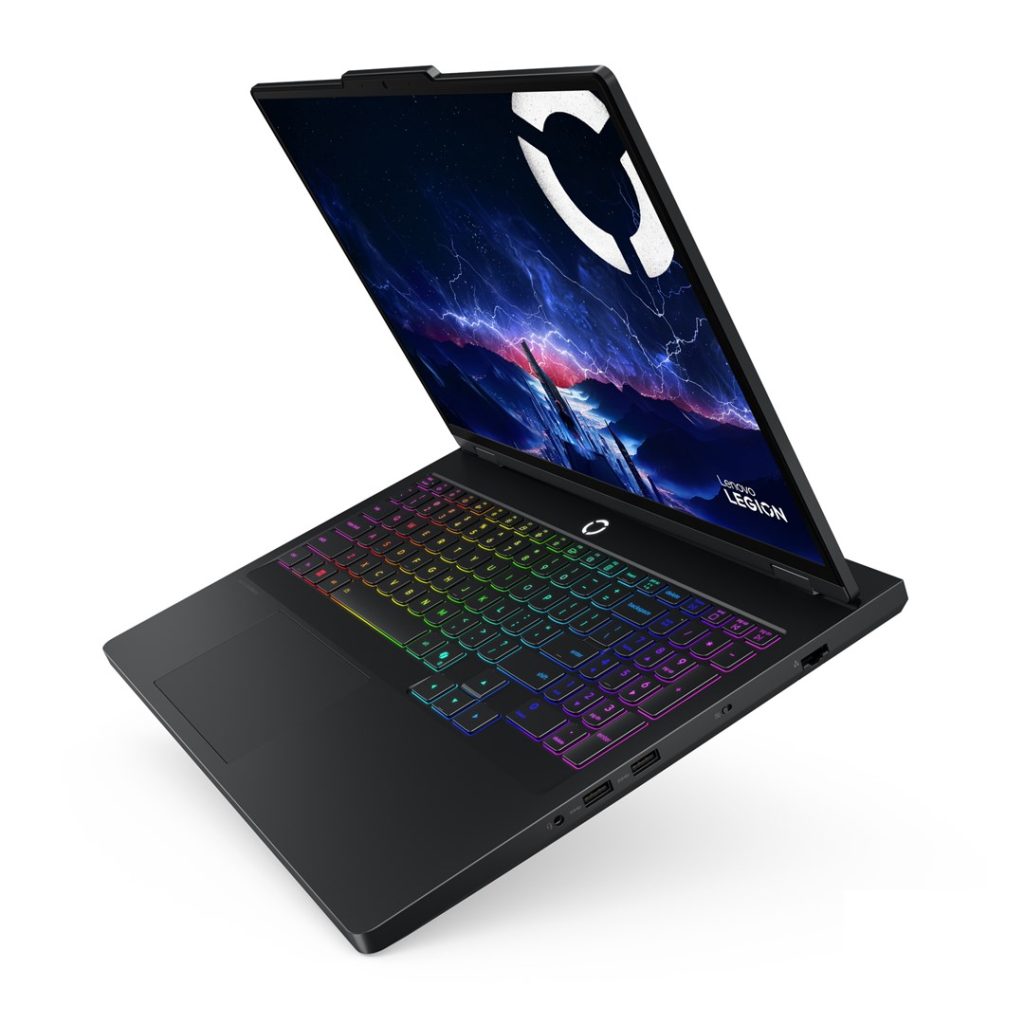

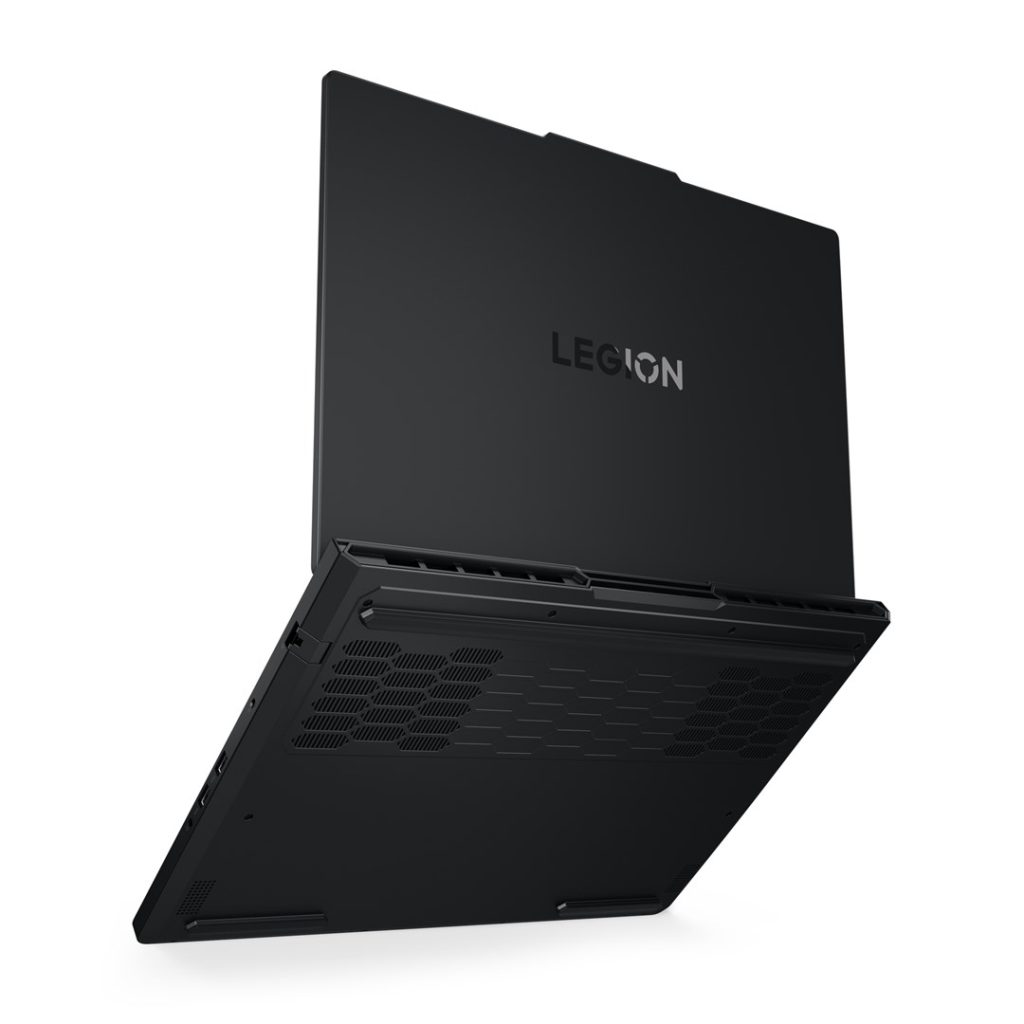

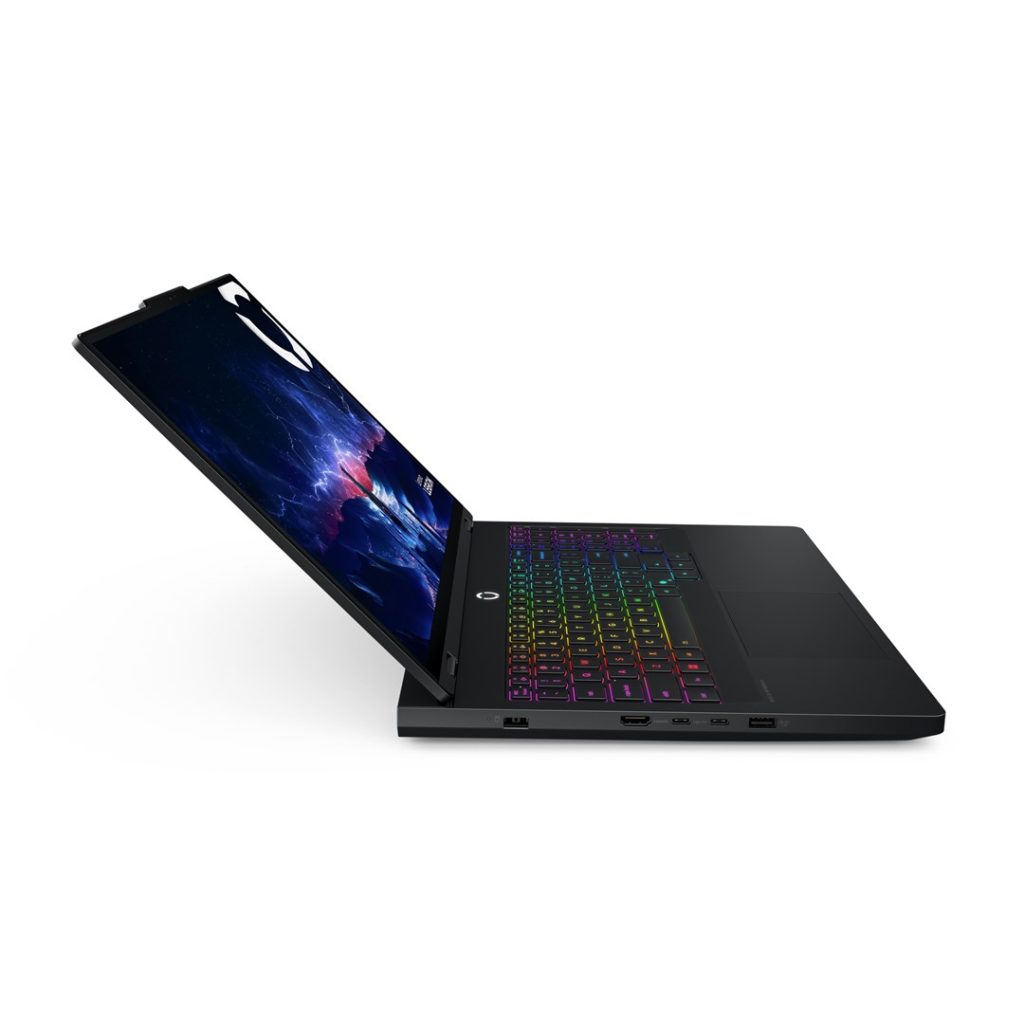

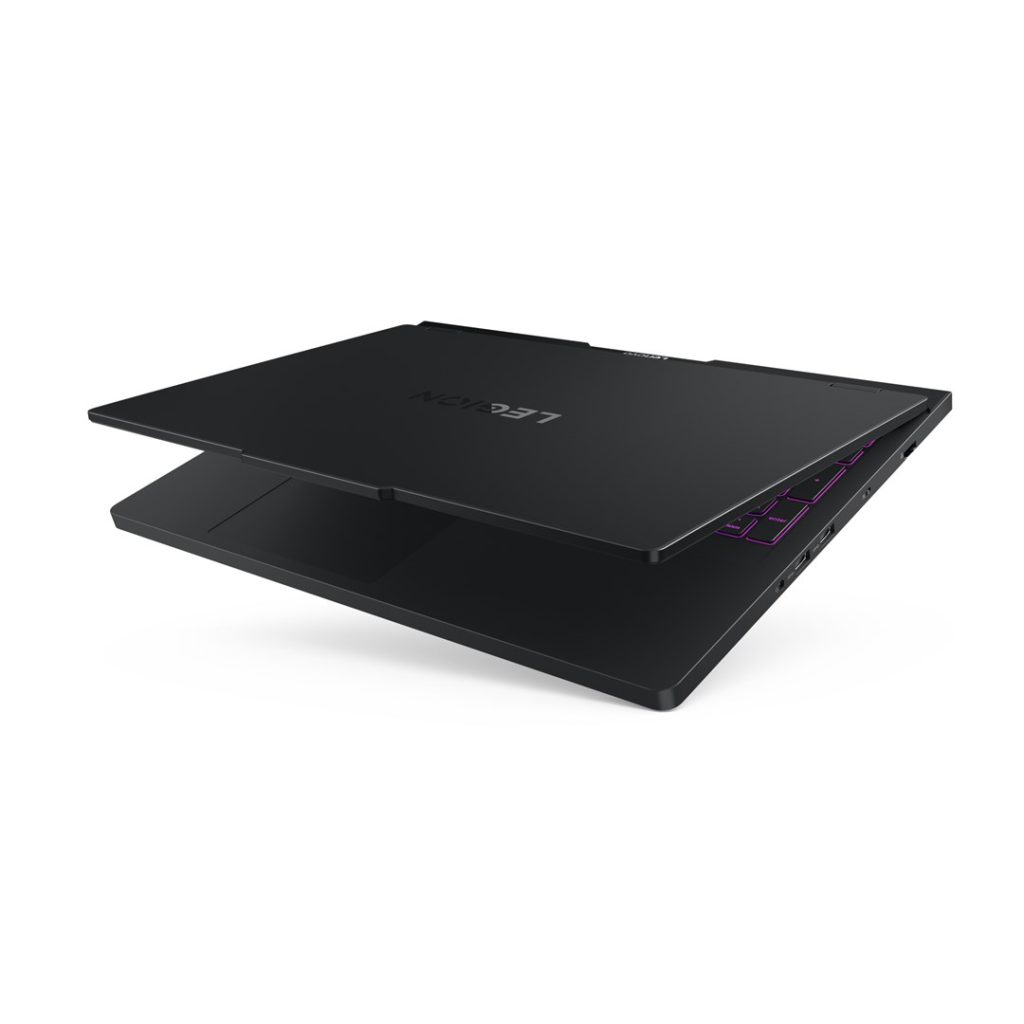

Lenovo Legion Pro 5 16IRX10 Intel® Core™ i9 i9-14900HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 6 (802.11ax) NoOS Black

Certificates | Certification

ErP Lot 6/26 TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)

Processor | Efficient-core Max Turbo Frequency

4.1 GHz

Storage | M.2 SSD size

2242 (22 x 42 mm)

Processor | Maximum turbo power

157 W

Processor | Performance cores

8

Processor | Performance-core base frequency

2.2 GHz

Processor | Efficient cores

16

Display | RGB colour space

DCI-P3

Processor | Processor generation

Intel® Core™ i9 (14th gen)

Keyboard | Keyboard backlit zone

24-zone RGB

Processor | Efficient-core base frequency

1.6 GHz

Operational conditions | Maximum shipping altitude

3048 m

Storage | SSD form factor

M.2

Weight & dimensions | Width

364.4 mm

Keyboard | Keyboard backlit colour

RGB

Memory | Memory clock speed

5600 MHz

Display | Display brightness

500 cd/m²

Design | Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Processor | Processor threads

24

Memory | Memory layout (slots x size)

2 x 16 GB

Keyboard | Pointing device

Touchpad

Operational conditions | Storage relative humidity (H-H)

5 - 95%

Storage | SSD capacity

1 TB

Power | AC adapter power

245 W

Processor | Processor cache type

Smart Cache

Graphics | On-board graphics card

Yes

Ports & interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Storage | Total SSDs capacity

1 TB

Ports & interfaces | Combo headphone/mic port

Yes

Graphics | On-board graphics card family

Intel Iris Xe Graphics

Memory | Internal memory type

DDR5-SDRAM

Ports & interfaces | HDMI version

2.1

Ports & interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Network | Ethernet LAN

Yes

Security | Fingerprint reader

No

Network | Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Audio | Number of microphones

2

Software | Operating system installed

N

Memory | Memory channels

Dual-channel

Storage | Storage media

SSD

Design | Product type

Laptop

Processor | Processor base power

55 W

Memory | Internal memory

32 GB

Storage | Card reader integrated

No

Weight & dimensions | Depth

268.1 mm

Display | Panel type

IPS

Display | High Dynamic Range (HDR) supported

Yes

Ports & interfaces | HDMI ports quantity

1

Display | Touchscreen

No

Power | USB Power Delivery (USB PD)

Yes

Storage | SSD interface

PCI Express 4.0

Graphics | On-board GPU manufacturer

Intel

Ports & interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Graphics | Discrete graphics card memory

8 GB

Processor | Performance-core Max Turbo Frequency

5.8 GHz

Processor | Processor manufacturer

Intel

Processor | Processor model

i9-14900HX

Display | Maximum refresh rate

240 Hz

Ports & interfaces | USB Sleep-and-Charge

Yes

Display | Anti-glare screen

Yes

Storage | Number of SSDs installed

1

Ports & interfaces | USB Sleep-and-Charge ports

1

Storage | NVMe

Yes

Memory | Memory slots

2x SO-DIMM

Network | Mobile network connection

No

Audio | Speaker power

2 W

Battery | Battery capacity

80 Wh

Storage | Total storage capacity

1 TB

Security | Password protection

Yes

Keyboard | Keyboard backlit

Yes

Weight & dimensions | Height (front)

2.17 cm

Network | Wi-Fi standards

Wi-Fi 6 (802.11ax)

Power | AC adapter frequency

50/60 Hz

Battery | Battery life (max)

3.4 h

Battery | Battery technology

Lithium-Ion (Li-Ion)

Graphics | Discrete graphics card

Yes

Graphics | Discrete GPU manufacturer

NVIDIA

Processor | Processor cache

36 MB

Network | WWAN

Not installed

Keyboard | Numeric keypad

Yes

Network | Bluetooth version

5.2

Display | High Dynamic Range (HDR) technology

DisplayHDR 400, Dolby Vision

Security | Trusted Platform Module (TPM) version

2.0

Audio | Speakers manufacturer

Harman Kardon

Battery | Fast charging

Yes

Design | Colour name

Eclipse Black

Graphics | Discrete graphics memory type

GDDR7

Ports & interfaces | USB Type-C DisplayPort Alternate Mode

Yes

Audio | Number of built-in speakers

2

Memory | Memory form factor

SO-DIMM

Camera | Front camera resolution (numeric)

5 MP

Battery | Continuous video playback time

7.1 h

Display | Colour gamut

100%

Weight & dimensions | Height (rear)

2.6 cm

Operational conditions | Operating temperature (T-T)

5 - 35 °C

Audio | Audio chip

Realtek ALC3287

Graphics | Discrete graphics card model

NVIDIA GeForce RTX 5060

Packaging content | AC adapter included

Yes

Graphics | NVIDIA G-SYNC

Yes

Graphics | On-board graphics card model

Intel Iris Xe Graphics

Processor | Processor cores

24

Performance | Motherboard chipset

Intel HM770

Display | HD type

WQXGA

Network | Ethernet LAN data rates

100, 1000 Mbit/s

Camera | Front camera

Yes

Storage | Optical drive type

No

Processor | Processor boost frequency

5.8 GHz

Weight & dimensions | Weight

2.4 kg

Display | LED backlight

Yes

Operational conditions | Storage temperature (T-T)

5 - 43 °C

Design | Product colour

Black

Network | Bluetooth

Yes

Memory | Maximum internal memory

32 GB

Display | Display diagonal

40.6 cm (16")

Audio | Audio system

Nahimic Audio

Display | Native aspect ratio

16:10

Network | Antenna type

2x2

Power | AC adapter input voltage

100 - 240 V

Ports & interfaces | Ethernet LAN (RJ-45) ports

1

Processor | Processor family

Intel® Core™ i9

Audio | Built-in microphone

Yes

Display | Display resolution

2560 x 1600 pixels

Operational conditions | Operating relative humidity (H-H)

8 - 95%

Security | Trusted Platform Module (TPM)

Yes

Safety warning | Hazard pictogram(s)

GHS07: Harmful, GHS09: Environmental hazard, GHS08: Health hazard

Safety warning | Warnings

Keep out of reach of children to avoid risk of electric shock., The device may become hot during operation; use caution to avoid burns., Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations.

Certificates | Compliance certificates

RoHS

Power | USB Type-C charging port

Yes

Power | USB Type-C required charging power (min)

65 W

Power | USB Type-C required charging power (max)

100 W

Keyboard | Copilot key

Yes
