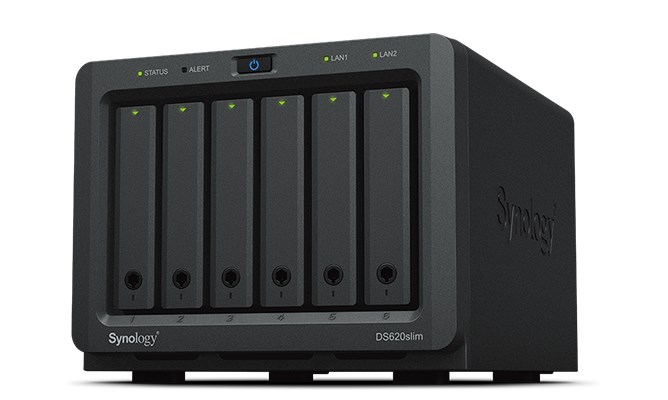

Synology DiskStation DS620SLIM NAS/storage server Desktop Intel® Celeron® J3355 2 GB DDR3L 0 TB DiskStation Manager Black

Safety warning | Warnings

Do not dismantle the appliance yourself., Do not dispose of the device in the regular rubbish bin. The product requires special disposal., Avoid contact with liquids.

Network | Wake-on-LAN ready

Yes

Storage | Supported storage drive types

HDD & SSD

Processor special features | Intel® High Definition Audio (Intel® HD Audio)

Yes

Processor special features | Intel® Smart Response Technology

No

Processor special features | Number of execution units

12

Processor special features | Intel® Hyper Threading Technology (Intel® HT Technology)

No

Processor | Processor package size

24 x 31 mm

Processor special features | Thermal Monitoring Technologies

Yes

Network | Ethernet LAN data rates

100, 10, 1000 Mbit/s

Power | AC input frequency

50 - 60 Hz

Design | Product colour

Black

Processor | PCI Express configurations

4x1, 1x2+2x1

Processor | PCI Express slots version

2.0

Processor | CPU configuration (max)

1

Processor | Processor lithography

14 nm

Weight & dimensions | Weight

1.4 kg

Processor special features | Intel® Turbo Boost Technology

No

Processor | Processor code

SR2Z8

Processor | On-board graphics card model

Intel® HD Graphics 500

Processor | Processor boost frequency

2.5 GHz

Processor special features | Embedded options available

Yes

Packaging content | Quick start guide

Yes

Performance | Noise level

20.5 dB

Processor special features | Intel® InTru™ 3D Technology

No

Ports & interfaces | Ethernet LAN (RJ-45) ports

2

Processor | Stepping

B1

Processor special features | Intel® Small Business Advantage (Intel® SBA)

No

Processor | Processor cores

2

Design | Cooling type

Active

Storage | RAID support

Yes

Processor | Tjunction

105 °C

Processor special features | Maximum number of PCI Express lanes

6

Performance | Type

NAS

Processor special features | UART

Yes

Processor special features | Enhanced Intel SpeedStep Technology

Yes

Processor special features | Intel® Identity Protection Technology (Intel® IPT)

Yes

Design | LED indicators

Yes

Power | AC input voltage

100 - 240 V

Operational conditions | Storage temperature (T-T)

-20 - 60 °C

Processor special features | Intel Clear Video Technology

Yes

Processor special features | Intel Secure Boot

Yes

Storage | RAID levels

10, 6, 0, JBOD, 1, 5

Operational conditions | Operating temperature (T-T)

5 - 40 °C

Processor | Processor family

Intel® Celeron®

Processor special features | Intel Identity Protection Technology version

1.00

Processor | Processor codename

Apollo Lake

Processor special features | Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Processor special features | Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Processor special features | Intel Smart Connect Technology version

0.00

Processor special features | Intel® Anti-Theft Technology (Intel® AT)

No

Processor | System bus rate

5 GT/s

Processor | Processor frequency

2 GHz

Processor special features | Idle States

Yes

Processor special features | Intel VT-x with Extended Page Tables (EPT)

Yes

Memory | Internal memory type

DDR3L

Software | Operating system installed

DiskStation Manager

Performance | Multilingual support

Yes

Logistics data | Harmonized System (HS) code

84714100

Network | iSCSI support

Yes

Processor special features | Intel® AES New Instructions (Intel® AES-NI)

Yes

Processor special features | Intel® OS Guard

No

Performance | Backup function

Yes

Processor | Processor operating modes

64-bit

Processor special features | Intel Smart Connect Technology

No

Design | Chassis type

Desktop

Network | Wi-Fi

No

Graphics | Number of displays supported (on-board graphics)

3

Processor | Processor cache type

Smart Cache

Memory | Memory slots

2

Processor special features | Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Yes

Ports & interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Processor special features | Execute Disable Bit

Yes

Weight & dimensions | Depth

175 mm

Graphics | On-board graphics card base frequency

250 MHz

Processor special features | Intel Trusted Execution Technology

No

Packaging content | Cables included

LAN (RJ-45), AC

Processor special features | Intel® Secure Key

Yes

Storage | Installed storage drive type

No

Processor | Processor threads

2

Processor special features | Intel Smart Response Technology version

0.00

Processor special features | Intel Secure Key Technology version

1.00

Performance | Number of users

1000 user(s)

Memory | Maximum RAM supported

6 GB

Storage | Supported file systems

Fat, HFS+, ext4, BTRFS, ext3, NTFS, exFAT

Ports & interfaces | USB port

Yes

Design | Fan diameter

8 cm

Storage | Total installed storage capacity

0 TB

Graphics | Maximum on-board graphics card memory

8 GB

Memory | Internal memory

2 GB

Processor special features | Intel® Insider™

No

Processor special features | Intel Enhanced Halt State

Yes

Processor | Processor socket

BGA 1296

Storage | Maximum supported storage capacity

108 TB

Weight & dimensions | Width

151 mm

Design | Number of fans

1 fan(s)

Weight & dimensions | Height

121 mm

Processor special features | Intel® Quick Sync Video Technology

Yes

Processor special features | Intel Stable Image Platform Program (SIPP) version

0.00

Network | Ethernet LAN

Yes

Processor | Processor model

J3355

Network | Supported network protocols

CIFS, AFP, NFS, FTP, WebDAV

Power | Power supply unit (PSU) capacity

65 W

Operational conditions | Storage relative humidity (H-H)

5 - 95%

Processor special features | Memory types supported by processor

LPDDR3-SDRAM, LPDDR4-SDRAM, DDR3L

Storage | Number of storage drives supported

6

Processor special features | Intel® Wireless Display (Intel® WiDi)

No

Processor | Processor cache

2 MB

Processor special features | Intel Rapid Storage Technology

No

Processor | Maximum internal memory supported by processor

8 GB

Processor special features | Intel Stable Image Platform Program (SIPP)

No

Processor special features | Intel Small Business Advantage (SBA) version

0.00

Storage | Hot-swap drive bays

Yes

Storage | Storage drives installed

No

Power | Power supply location

Built-in

Other features | Processor ARK ID

95597

Processor | Thermal Design Power (TDP)

10 W

Power | Number of power supply units

1

Processor special features | Intel Secure Boot Technology version

1.00

Processor | Conflict-Free processor

Yes

Storage | Storage drive capacity

0 GB

Processor special features | Intel Virtualization Technology (VT-x)

Yes

Processor special features | Intel 64

Yes

Processor | Processor manufacturer

Intel

Graphics | On-board graphics card burst frequency

700 MHz

Power | Power consumption (typical)

34.88 W

Performance | Device class

Small & Medium Business
