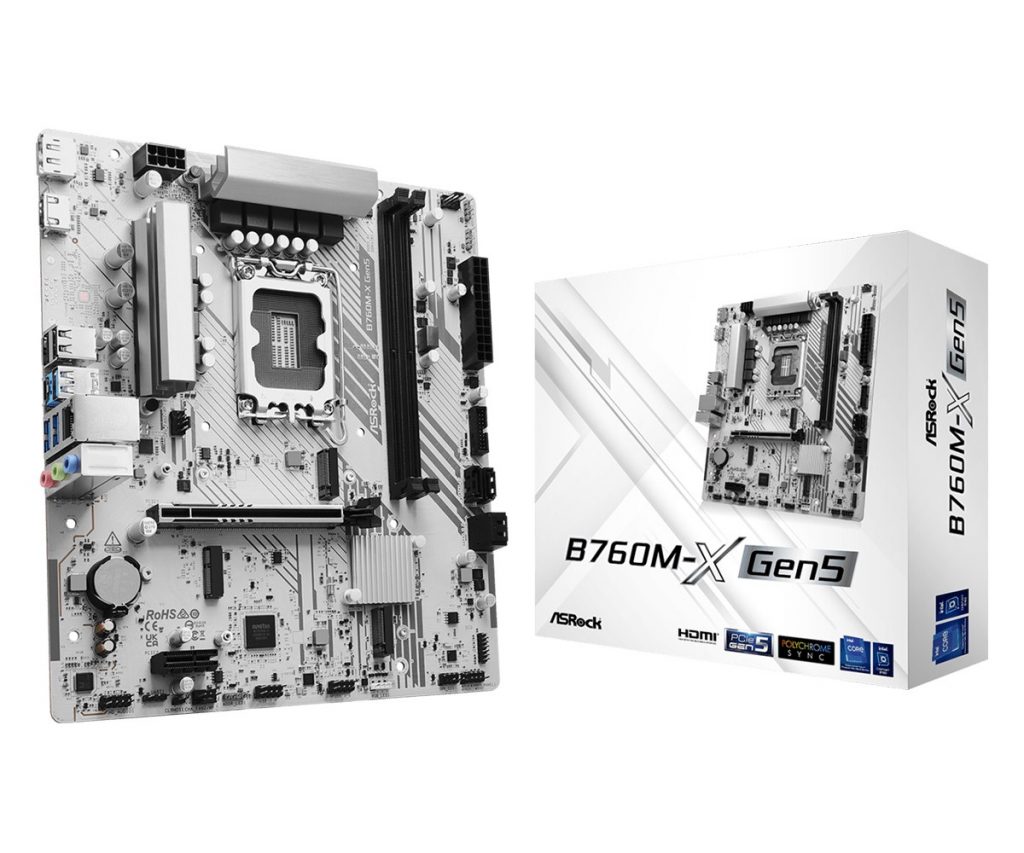

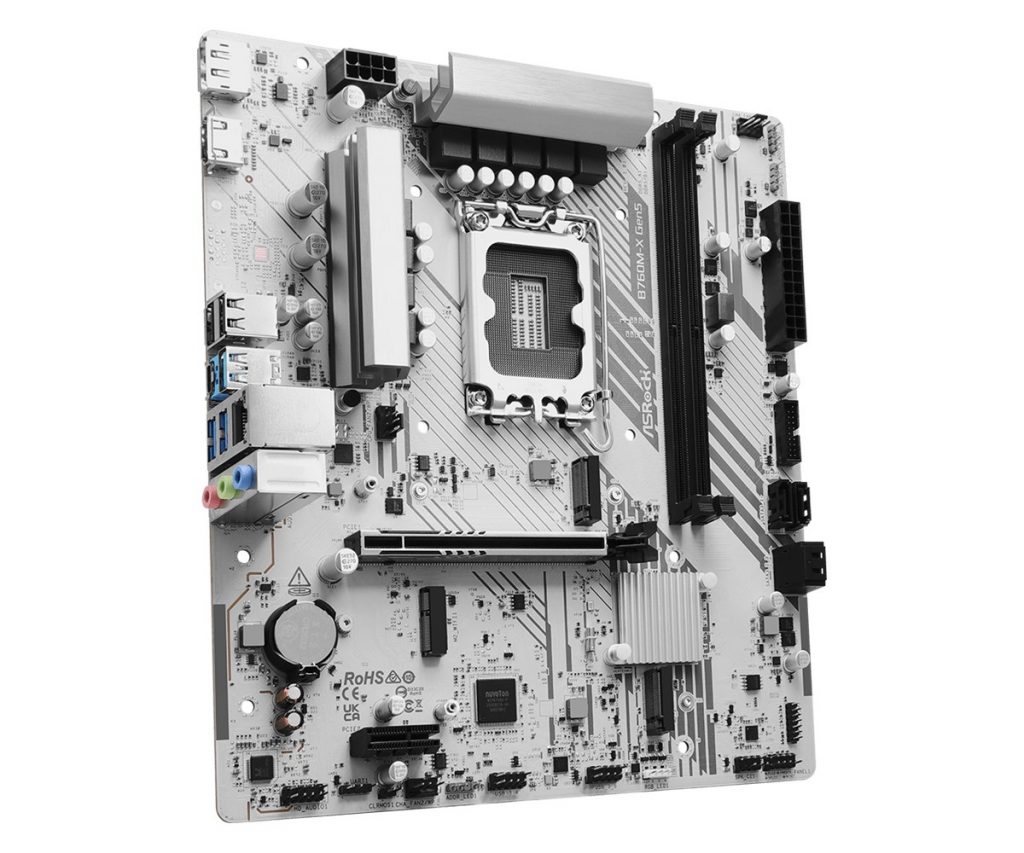

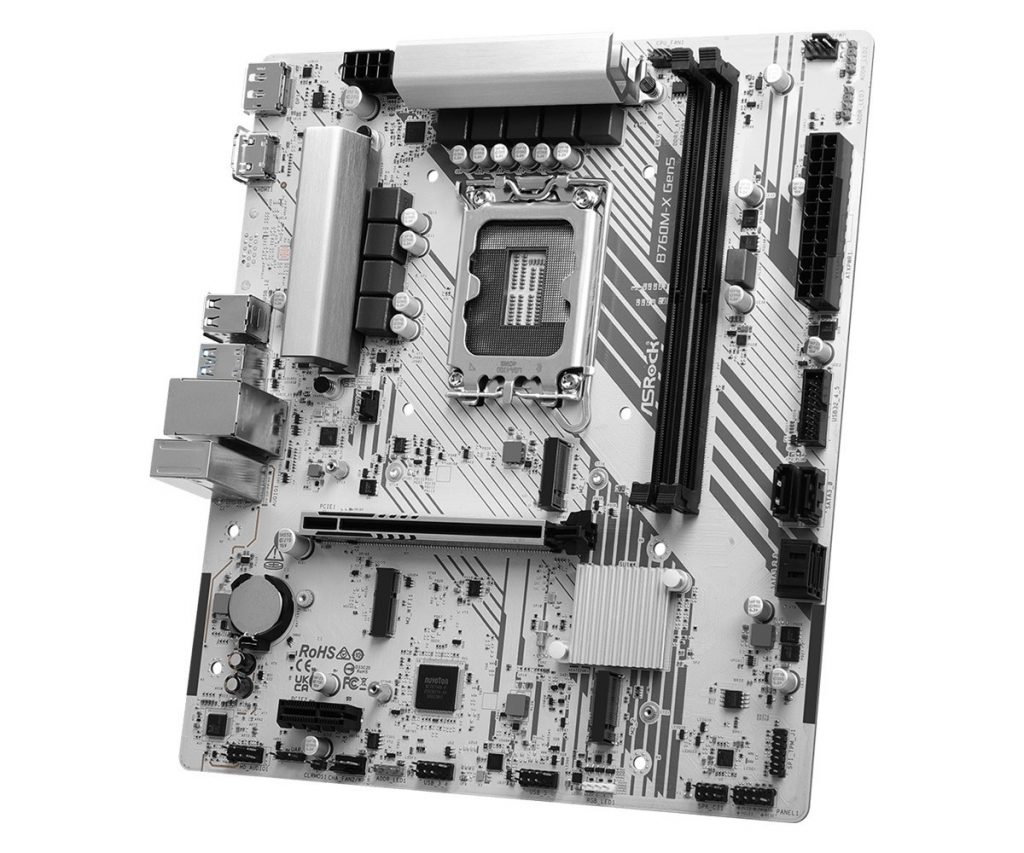

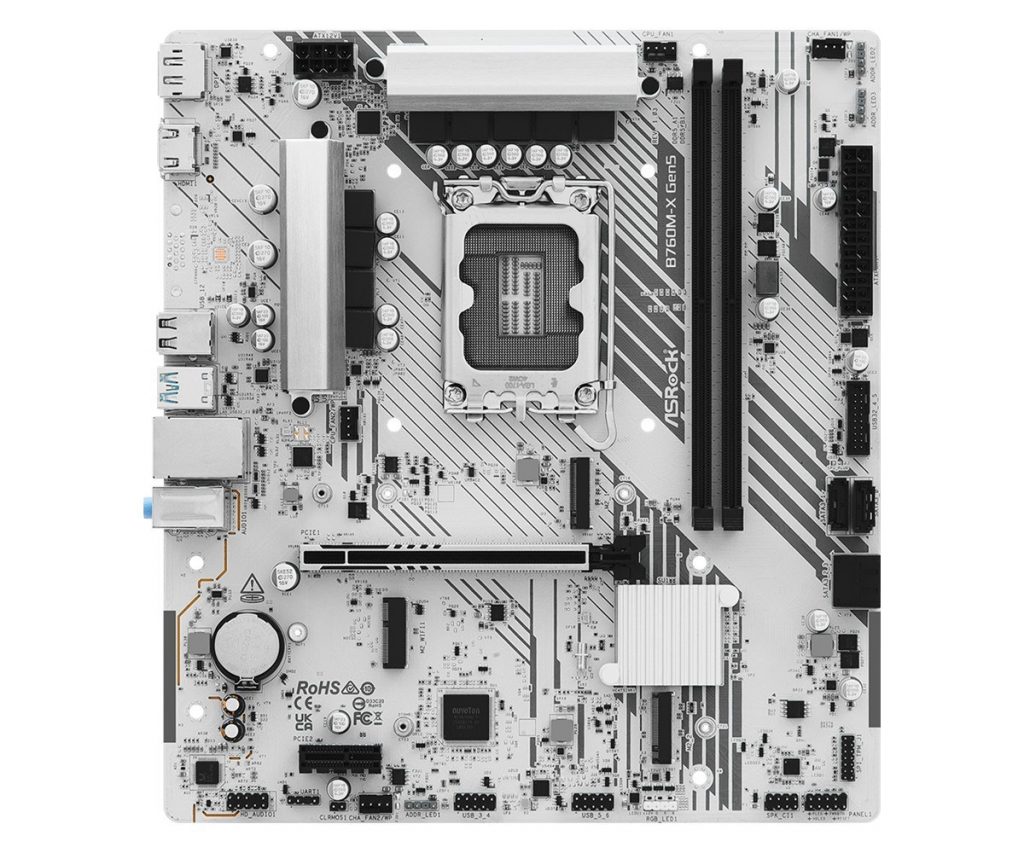

Asrock B760M-X Gen5 Intel B760 LGA 1700 micro ATX

Processor | Compatible processor series

Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 14th Gen, Intel Core i3 12th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen

Network | Ethernet interface type

2.5 Gigabit Ethernet

Processor | Processor manufacturer

Intel

Memory | Supported memory types

DDR5-SDRAM

Memory | Memory slots type

SO-DIMM

Network | Ethernet LAN

Yes

Weight & dimensions | Depth

221 mm

Processor | Processor socket

LGA 1700

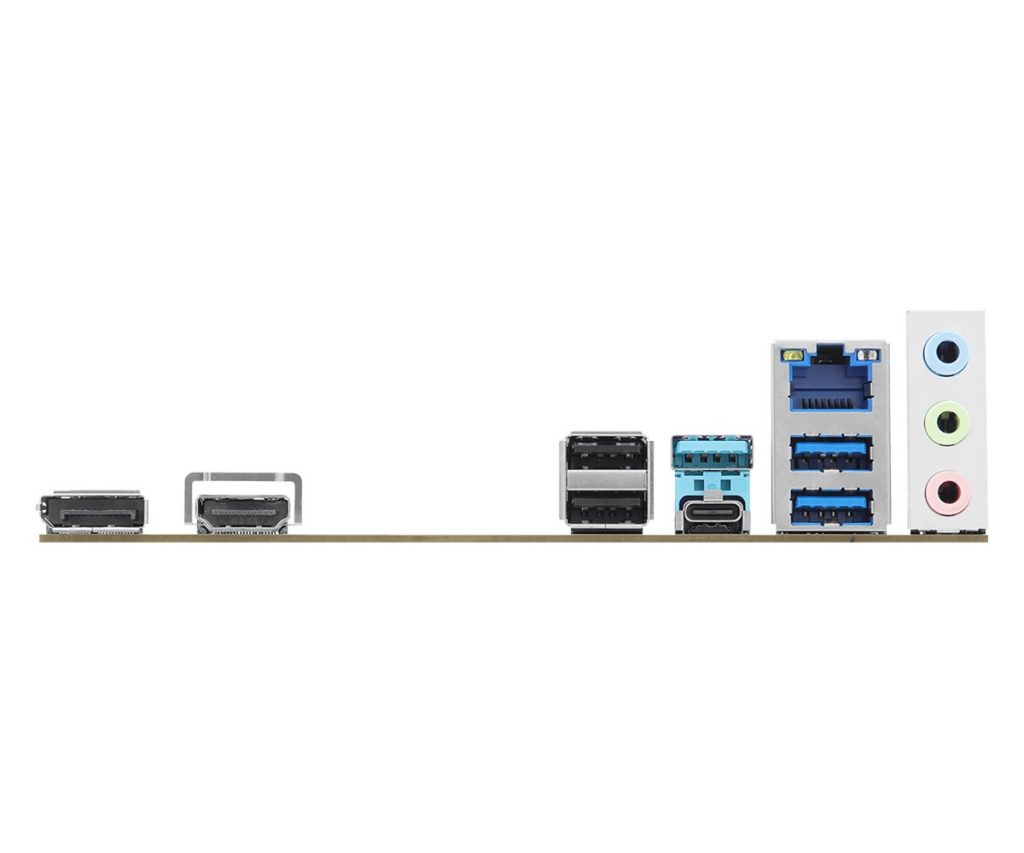

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Rear panel I/O ports | HDMI ports quantity

1

Internal I/O | RGB LED pin header

Yes

Features | Windows operating systems supported

Windows 11 x64, Windows 10 x64

Memory | Memory channels

Dual-channel

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Weight & dimensions | Width

244 mm

Network | Wi-Fi

No

Packaging content | Cables included

SATA

Internal I/O | TPM connector

Yes

Memory | Number of memory slots

2

Features | Audio chip

Realtek ALC897

Features | Motherboard chipset family

Intel

Storage controllers | RAID support

Yes

Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Storage controllers | Supported storage drive interfaces

SATA III, M.2

Features | Audio output channels

7.1 channels

Rear panel I/O ports | USB 2.0 ports quantity

2

Internal I/O | CPU fan connector

Yes

Internal I/O | Number of SATA III connectors

4

Internal I/O | EPS power connector (8-pin)

Yes

Network | LAN controller

Dragon RTL8125BG

Rear panel I/O ports | Ethernet LAN (RJ-45) ports

1

Memory | Maximum internal memory

128 GB

Internal I/O | ATX Power connector (24-pin)

Yes

Storage controllers | RAID levels

1, 5, 10, 0

BIOS | BIOS type

UEFI AMI

Expansion slots | Number of M.2 (M) slots

1

Internal I/O | Front panel audio connector

Yes

Rear panel I/O ports | DisplayPort version

1.4

Features | Motherboard chipset

Intel B760

Expansion slots | PCI Express x1 (Gen 3.x) slots

1

Features | Motherboard form factor

micro ATX

Rear panel I/O ports | DisplayPorts quantity

1

Expansion slots | PCI Express x16 (Gen 5.x) slots

1

Memory | Supported memory clock speeds

7200

Memory | ECC сompatibility

Non-ECC

Internal I/O | USB 2.0 connectors

2

Memory | Unbuffered memory

Yes
